- MRF7S24250N
250 W CW over 2400-2500 MHz, 32 V RF Power LDMOS Transistor
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.
The MRF7S24250N 250 W CW RF power transistor is designed for industrial, scientific, medical (ISM) and industrial heating applications at 2450 MHz. This device is suitable for use in CW, pulse and linear applications. This high gain, high efficiency rugged device is targeted to replace industrial magnetrons and will provide longer life and easier servicing.
Product Details
RF Performance Tables
Typical Performance

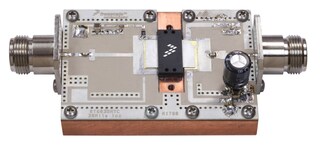

In 2400–2500 MHz reference circuit, VDD = 32 Vdc| Frequency (MHz) |
Signal Type | Pin (W) |
Gps (dB) |
ηD (%) |
Pout (W) |
| 2400 | CW | 9.0 | 14.5 | 55.5 | 255 |
| 2450 | 9.0 | 14.7 | 54.8 | 263 | |
| 2500 | 9.0 | 14.3 | 55.5 | 242 |
Load Mismatch/Ruggedness
| Frequency (MHz) |
Signal Type | VSWR | Pin (W) |
Test Voltage |
Result |
| 2450 | CW | > 10:1 at all Phase Angles | 14 (3 dB Overdrive) | 32 | No Device Degradation |
