2496-2690 MHz, 9 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT26HW050S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

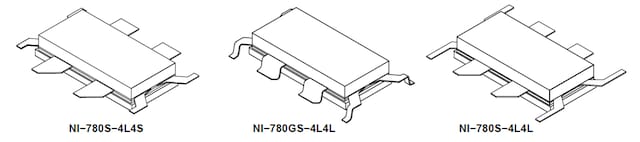

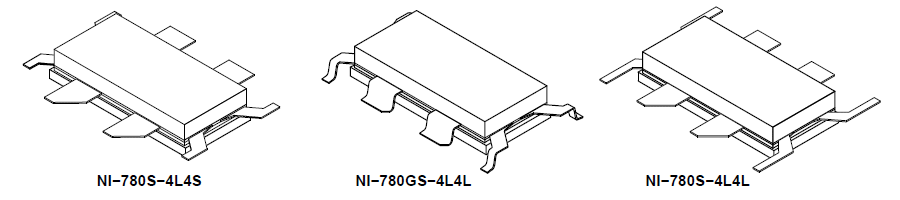

Roll over image to zoom in

The AFT26HW050SR3, AFT26HW050GSR3 and AFT26H050W26SR3 9 watt asymmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2496 to 2690 MHz.

Product Details

Select a section:

RF Performance Table

2600 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 100 mA, VGSB = 1.4 Vdc, Pout = 9 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
2620 MHz14.948.67.9–28.4
2655 MHz14.648.37.9–32.6
2690 MHz14.247.17.8–37.3
