2496-2690 MHz, 50 W Avg., 28 V Airfast® RF Power LDMOS Transistor
- No Longer Manufactured
- AFT26H250W03S
2496-2690 MHz, 50 W Avg., 28 V Airfast® RF Power LDMOS Transistor
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

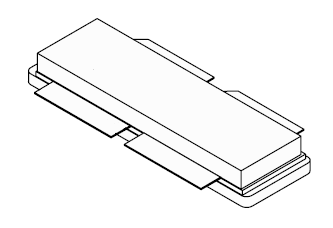

The AFT26H250W03SR6 50 W asymmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2496 to 2690 MHz.
Product Details
RF Performance Table
2600 MHz
Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQA = 700 mA, VGSB = 0.4 Vdc, Pout = 50 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
| 2496 MHz | 14.1 | 44.6 | 8.1 | –31.5 |
| 2590 MHz | 14.4 | 44.9 | 8.1 | –33.8 |
| 2690 MHz | 14.2 | 44.2 | 7.9 | –37.6 |
