2496-2690 MHz, 22 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT26P100-4WS
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

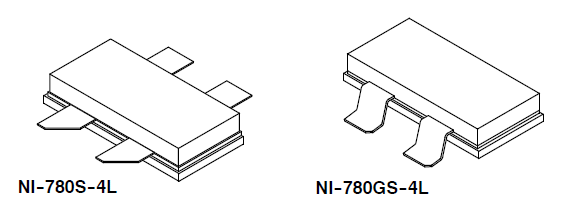

Roll over image to zoom in

The AFT26P100-4WSR3 and AFT26P100-4WGSR3 22 watt symmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2496 to 2690 MHz.

Product Details

Select a section:

RF Performance Table

2600 MHz

Typical Doherty Single-Carrier W-CDMA Characterization Performance: VDD = 28 Volts, VGSA = 0.4 Vdc, IDQB = 344 mA, Pout = 22 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)		 IRL
(dB)
2496 MHz15.544.48.0–32.3–15
2590 MHz16.143.57.8–34.9–14
2690 MHz15.343.97.4–35.0–13
