- A2T21S260W12N
2110-2200 MHz, 56 W Avg., 28 V Airfast® RF Power LDMOS Transistor
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

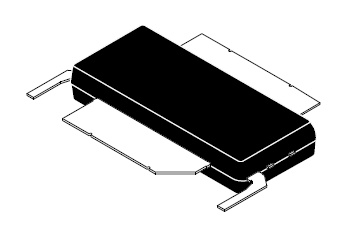

The A2T21S260W12NR3 56 W RF power LDMOS transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2110 to 2200 MHz.
Product Details
RF Performance Table
2100 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ = 1600 mA, Pout = 56 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
IRL (dB) |
| 2110 MHz | 17.0 | 30.0 | 6.9 | –35.2 | –11 |
| 2140 MHz | 17.6 | 30.8 | 6.9 | –34.2 | –16 |
| 2170 MHz | 17.9 | 31.8 | 6.8 | –33.5 | –25 |
| 2200 MHz | 18.2 | 32.9 | 6.6 | –32.9 | –15 |
