2110-2170 MHz, 63 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT21H350W03S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

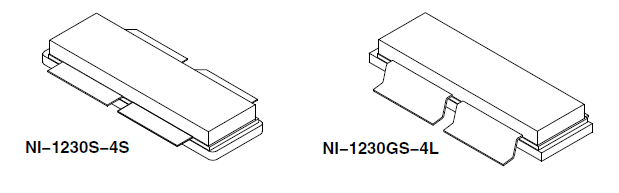

The AFT21H350W03SR6 and AFT21H350W04GSR6 63 watt asymmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2110 to 2170 MHz.

Product Details

Select a section:

RF Performance Table

2100 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 750 mA, VGSB = 0.7 Vdc, Pout = 63 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
2110 MHz16.447.17.5–26.0
2140 MHz16.546.37.5–27.9
2170 MHz16.545.27.4–30.1
N true 0 PSPAFT21H350W03Sen 1 Data Sheet Data Sheet t520 1 en_US en_US en Data Sheet Data Sheet 1 1 0 English AFT21H350W03SR6 and AFT21H350W04GSR6 are 63 watt asymmetrical Doherty RF power LDMOS transistors designed for cellular base station applications requiring very wide instantaneous bandwidth capability with a frequency range of 2110 to 2170 MHz. 1380251478777723057850 PSP 551.9 KB None None documents None 1380251478777723057850 /docs/en/data-sheet/AFT21H350W03S.pdf 551916 /docs/en/data-sheet/AFT21H350W03S.pdf AFT21H350W03S documents N N 2016-10-31 ARCHIVED - AFT21H350W03SR6 AFT21H350W04GSR6 2110-2170 MHz, 63 W Avg., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistors - Data Sheet /docs/en/data-sheet/AFT21H350W03S.pdf /docs/en/data-sheet/AFT21H350W03S.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Sep 26, 2013 980000996212993340 Data Sheet Y N ARCHIVED - AFT21H350W03SR6 AFT21H350W04GSR6 2110-2170 MHz, 63 W Avg., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistors - Data Sheet false 0 AFT21H350W03S downloads en true 1 Y PSP Data Sheet 1 /docs/en/data-sheet/AFT21H350W03S.pdf 2016-10-31 1380251478777723057850 PSP 1 Sep 26, 2013 Data Sheet AFT21H350W03SR6 and AFT21H350W04GSR6 are 63 watt asymmetrical Doherty RF power LDMOS transistors designed for cellular base station applications requiring very wide instantaneous bandwidth capability with a frequency range of 2110 to 2170 MHz. None /docs/en/data-sheet/AFT21H350W03S.pdf English documents 551916 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/AFT21H350W03S.pdf ARCHIVED - AFT21H350W03SR6 AFT21H350W04GSR6 2110-2170 MHz, 63 W Avg., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistors - Data Sheet /docs/en/data-sheet/AFT21H350W03S.pdf documents 980000996212993340 Data Sheet N en None Y pdf 0 N N ARCHIVED - AFT21H350W03SR6 AFT21H350W04GSR6 2110-2170 MHz, 63 W Avg., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistors - Data Sheet 551.9 KB AFT21H350W03S N 1380251478777723057850 true Y Products
