2110-2170 MHz, 55 W Avg., 28 V Airfast® RF Power LDMOS Transistor

AFT21S240-12S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

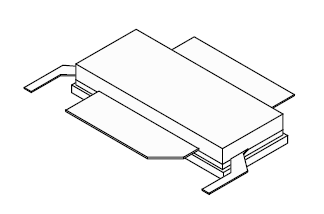

Roll over image to zoom in

The AFT21S240-12SR3 55 W RF power LDMOS transistor is designed for cellular base station applications covering the frequency range of 2110 to 2170 MHz.

Product Details

Select a section:

RF Performance Table

2100 MHz

Typical Single-Carrier W-CDMA Characterization Performance: VDD = 28 Vdc, IDQ = 1400 mA, Pout = 55 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)		 IRL
(dB)
2110 MHz19.532.47.2–34.4–20
2140 MHz19.832.87.2–33.7–19
2170 MHz20.233.17.1–33.1–16
