- MD7IC2250N
2110-2170 MHz, 5.3 W Avg., 28 V RF LDMOS Wideband Integrated Power Amplifiers
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

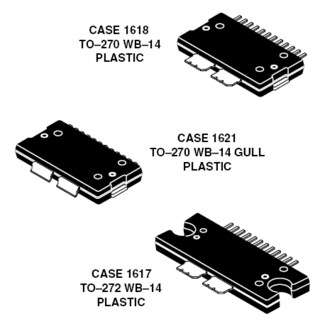

The MD7IC2250NR1, MD7IC2250GNR1 and MD7IC2250NBR1 wideband integrated circuits are designed with on-chip matching that make them usable from 2000 to 2200 MHz. This multi-stage structure is rated for 24 to 32 Volt operation and covers all typical cellular base station modulation formats.
Product Details
RF Performance Table
2000 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ1(A+B) = 80 mA, IDQ2(A+B) = 520 mA, Pout = 5.3 Watts Avg., IQ Magnitude Clipping, Channel Bandwidth = 3.84 MHz, Input Signal PAR = 7.5 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
PAE (%) |
ACPR (dBc) |
| 2110 MHz | 31.2 | 17.0 | –48.3 |
| 2140 MHz | 31.1 | 16.8 | –49.3 |
| 2170 MHz | 31.1 | 16.8 | –50.1 |
- Capable of Handling 10:1 VSWR, @ 32 Vdc, 2140 MHz, 63 Watts CW Output Power (3 dB Input Overdrive from Rated Pout)
- Typical Pout @ 1 dB Compression Point ≃ 54 Watts CW
