2110-2170 MHz, 32 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT21S140W02S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

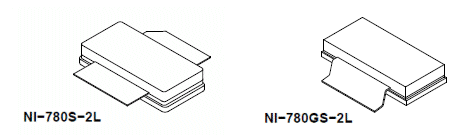

Roll over image to zoom in

The AFT21S140W02SR3 and AFT21S140W02GSR3 32 W RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2110 to 2170 MHz.

Product Details

Select a section:

RF Performance Tables

2100 MHz

Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ = 800 mA, Pout = 32 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)		 IRL
(dB)
2110 MHz19.033.96.7–32.4–15
2140 MHz19.333.56.7–32.6–24
2170 MHz19.433.26.7–32.7–22
