2 x 40 W/2 ohm stereo BTL car radio power amplifier with differential inputs and diagnostic outputs
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

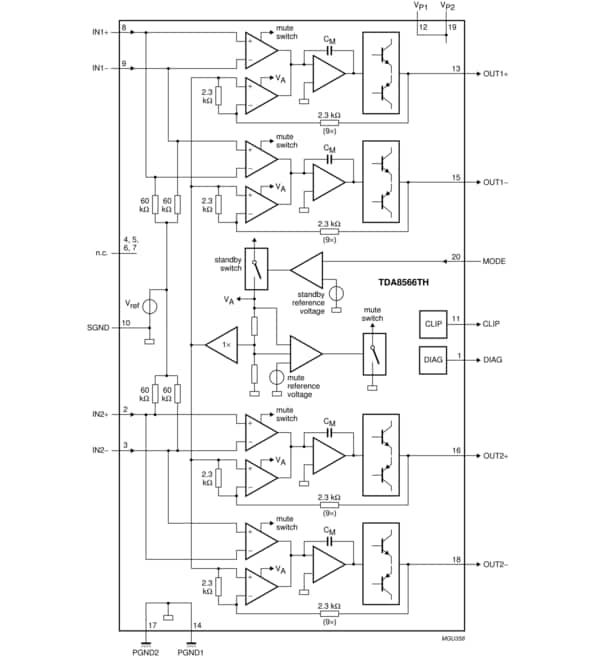

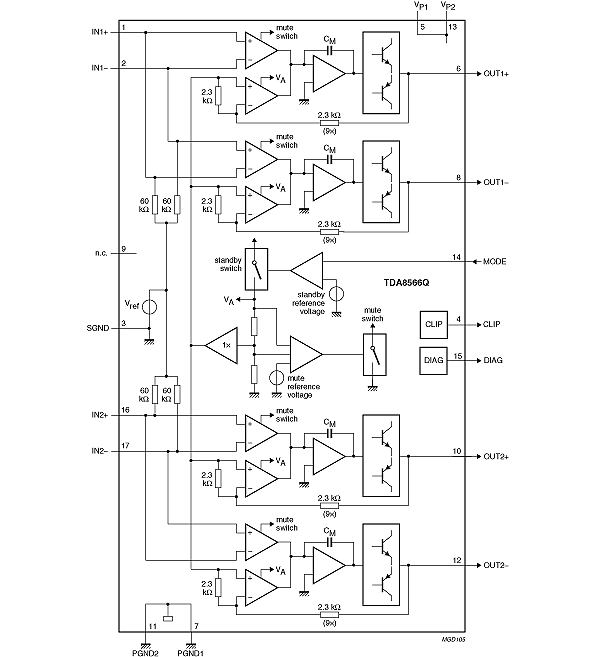

The TDA8566 is an integrated class-B output amplifier which is available in several packages. TDA8566TH is contained in a 20-lead small outline plastic package. The TDA8566TH1 is a 24-lead small outline plastic package which is pin compatible with the I²C-bus controlled amplifier TDA1566TH for one board layout. TDA8566Q is a 17-pin DIL-bent-SIL package.
The device contains 2 amplifiers in a Bridge-Tied Load (BTL) configuration. The output power is 2 x 25 W in a 4 Ω load or 2 x 40 W in a 2 Ω load. It has a differential input stage and 2 diagnostic outputs. The device is primarily developed for car radio applications.
Buy/Parametrics
2 results
Exclude 2 NRND
Part | CAD Model | Remark | Status | RMS power (W) | Output power (W) | Stereo inputs | S | Package material | Amplifier type | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|
Diagnostic outputs | No Longer Manufactured | 2 x 25 | 25 | 2 | S = transferred 2009 | short leads | Stereo Class-AB | DBS17P, RDBS17P | ||
Diagnostic outputs | No Longer Manufactured | 2 x 25 | 25 | — | — | — | Stereo Class-AB | HSOP20 |
