- SA58670BS
2.1 W/channel stereo class-D audio amplifier
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

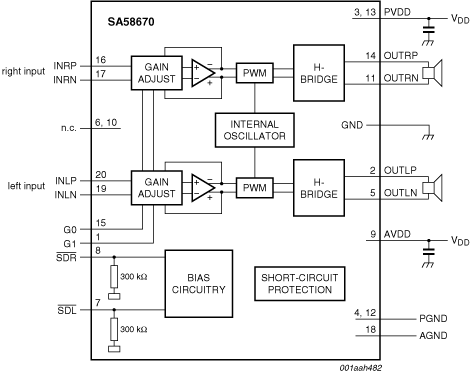

The SA58670 is a stereo, filter-free class-D audio amplifier which is available in an HVQFN20 package with the exposed Die Attach Paddle (DAP).
The SA58670 features independent shutdown controls for each channel. The gain may be set at 6 dB, 12 dB, 18 dB or 24 dB with gain select pins G0 and G1. Improved immunity to noise and RF rectification is increased by high PSRR and differential circuit topology. Fast start-up time and small package makes it an ideal choice for both cellular handsets and PDAs.
The SA58670 delivers 1.4 W/channel at 5.0 V and 720 mW/channel at 3.6 V into 8 Ω. It delivers 2.1 W/channel at 5.0 V into 4 Ω. The maximum power efficiency is excellent at 70 pct to 74 pct into 4 Ω and 84 pct to 88 pct into 8 Ω. The SA58670 provides thermal and short-circuit shutdown protection.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
2 documents
-
Data Sheet
2.1 W/channel stereo class-D audio amplifier
-
Package Information
plastic thermal enhanced very thin quad flat package; no leads; 20 terminals
