1880-2025 MHz, 24 W Avg., 28 V Airfast® RF Power LDMOS Transistors

AFT20P140-4WN
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

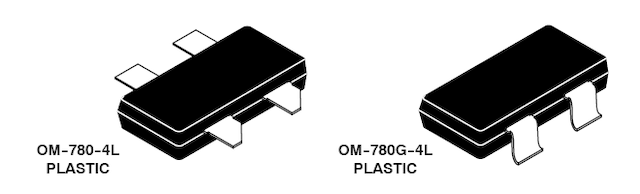

Roll over image to zoom in

The AFT20P140-4WNR3 and AFT20P140-4WGNR3 24 W symmetrical Doherty RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 1880 to 2025 MHz.

Product Details

Select a section:

RF Performance Table

2025 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQA = 500 mA, VGSB = 0.6 Vdc, Pout = 24 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
1880 MHz17.841.77.7–31.0
1960 MHz17.841.77.7–33.7
2025 MHz17.641.27.8–34.0
