- No Longer Manufactured
- AFT18S290-13S
1805-1995 MHz 63 W Avg., 28 V Airfast® RF Power LDMOS Transistor
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

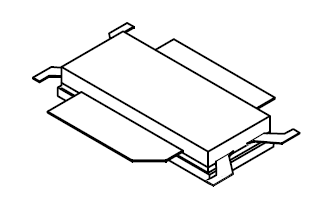

The AFT18S290-13SR3 63 watt RF power LDMOS transistor is designed for cellular base station applications covering the frequency range of 1805 to 1995 MHz.
Product Details
RF Performance Tables
1900 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 2000 mA, Pout = 63 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
IRL (dB) |
| 1930 MHz | 18.0 | 31.2 | 7.1 | –36.0 | –19 |
| 1960 MHz | 18.2 | 31.2 | 7.1 | –35.0 | –19 |
| 1995 MHz | 18.2 | 31.8 | 6.9 | –35.0 | –12 |
1800 MHz
Typical Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQ = 2000 mA, Pout = 63 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.| Frequency | Gps (dB) |
ηD (%) |
Output PAR (dB) |
ACPR (dBc) |
IRL (dB) |
| 1805 MHz | 18.0 | 33.3 | 7.1 | –35.0 | –13 |
| 1840 MHz | 18.2 | 32.7 | 7.1 | –35.0 | –16 |
| 1880 MHz | 18.3 | 32.6 | 7.1 | –34.0 | –13 |
