1805-1880 MHz, 87 W Avg., 31.5 V Airfast® RF Power LDMOS Transistor

A2T18H455W23N
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

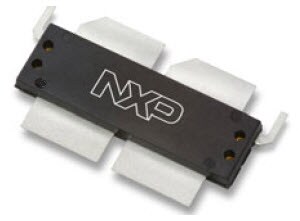

The A2T18H455W23NR6 87 W asymmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 1805 to 1880 MHz.

Product Details

Select a section:

RF Performance Table

1800 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 31.5 Vdc, IDQA = 1080 mA, VGSB = 0.25 Vdc, Pout = 87 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
1805 MHz14.548.18.1–32.7
1840 MHz15.248.28.1–33.0
1880 MHz15.948.48.0–33.8
