1805-1880 MHz, 63 W Avg., 28 V Airfast® RF Power LDMOS Transistor

AFT18P350-4S2L
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

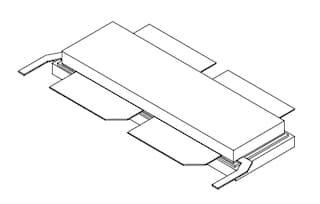

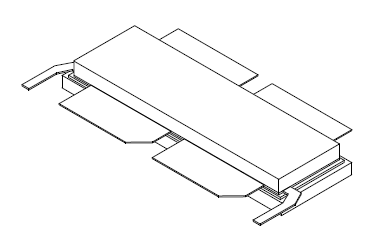

Roll over image to zoom in

The AFT18P350-4S2LR6 63 watt symmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications covering the frequency range of 1805 to 1880 MHz.

Product Details

Select a section:

RF Performance Table

1800 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 1000 mA, VGSB = 1.2 Vdc, Pout = 63 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
1805 MHz16.144.57.7–29.8
1840 MHz16.144.37.7–31.6
1880 MHz15.844.17.6–33.0
