1805-1880 MHz, 63 W Avg., 28 V Airfast® RF Power LDMOS Transistor

AFT18HW355S
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

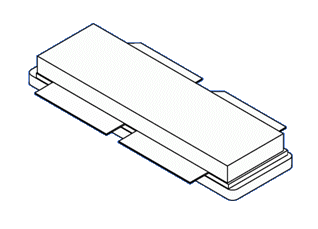

Roll over image to zoom in

The AFT18HW355SR6 63 watt asymmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 1805 to 1880 MHz.

Product Details

Select a section:

RF Performance Tables

1800 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Volts, IDQA = 1100 mA, VGSB = 1.45 Vdc, Pout = 63 Watts Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)		 IRL
(dB)
1805 MHz14.848.17.3–27.2–13
1840 MHz15.348.97.4–27.7–12
1880 MHz15.248.37.5–29.2–9
