1805-1880 MHz, 63 W Avg., 28 V Airfast® RF Power LDMOS Transistor

AFT18H357-24N
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

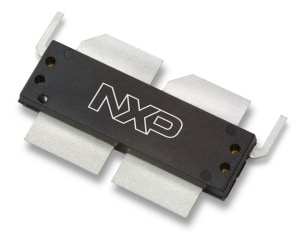

The AFT18H357-24NR6 63 W asymmetrical Doherty RF power LDMOS transistor is designed for cellular base station applications covering the frequency range of 1805 to 1880 MHz.

Product Details

Select a section:

RF Performance Table

1800 MHz

Typical Doherty Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQA = 800 mA, VGSB = 0.9 V, Pout = 63 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
Frequency Gps
(dB)		 ηD
(%)		 Output PAR
(dB)		 ACPR
(dBc)
1805 MHz17.548.77.6–37.5
1840 MHz17.648.37.7–38.9
1880 MHz17.448.27.7–38.5
N true 0 PSPAFT18H357-24Nen 1 Data Sheet Data Sheet t520 1 en_US en_US en Data Sheet Data Sheet 1 1 0 English 63 W asymmetrical Doherty RF power LDMOS transistor designed for cellular base station applications covering the frequency range of 1805 to 1880 MHz 1431487607368707588953 PSP 533.2 KB None None documents None 1431487607368707588953 /docs/en/data-sheet/AFT18H357-24N.pdf 533225 /docs/en/data-sheet/AFT18H357-24N.pdf AFT18H357-24N documents N N 2016-10-31 ARCHIVED - AFT18H357-24N 1805–1880 MHz, 63 W AVG., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistor Data Sheet /docs/en/data-sheet/AFT18H357-24N.pdf /docs/en/data-sheet/AFT18H357-24N.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en May 12, 2015 980000996212993340 Data Sheet Y N ARCHIVED - AFT18H357-24N 1805–1880 MHz, 63 W AVG., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistor Data Sheet false 0 AFT18H357-24N downloads en true 1 Y PSP Data Sheet 1 /docs/en/data-sheet/AFT18H357-24N.pdf 2016-10-31 1431487607368707588953 PSP 1 May 12, 2015 Data Sheet 63 W asymmetrical Doherty RF power LDMOS transistor designed for cellular base station applications covering the frequency range of 1805 to 1880 MHz None /docs/en/data-sheet/AFT18H357-24N.pdf English documents 533225 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/AFT18H357-24N.pdf ARCHIVED - AFT18H357-24N 1805–1880 MHz, 63 W AVG., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistor Data Sheet /docs/en/data-sheet/AFT18H357-24N.pdf documents 980000996212993340 Data Sheet N en None Y pdf 0 N N ARCHIVED - AFT18H357-24N 1805–1880 MHz, 63 W AVG., 28 V Airfast<sup>®</sup> RF Power LDMOS Transistor Data Sheet 533.2 KB AFT18H357-24N N 1431487607368707588953 true Y Products
