- No Longer Manufactured
- TDA8551T
1 W BTL audio amplifier with digital volume control
- This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

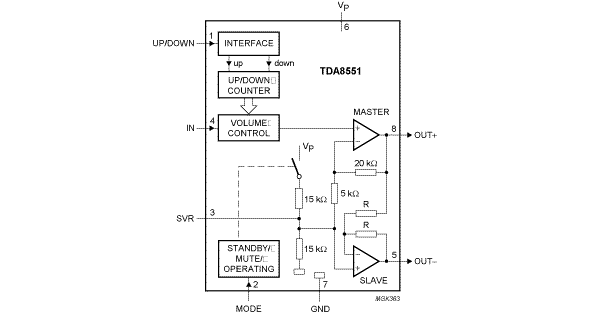

The TDA8551T is a one channel 1 W Bridge-Tied Load (BTL) audio power amplifier capable of delivering 1 W output power to an 8 Ω load at THD = 10% using a 5 V power supply. The circuit contains a BTL power amplifier, a digital volume control, and standby/mute logic. The TDA8551T comes in an 8-pin SO package and the TDA8551 in an 8-pin DIP package.
