1.8 V single UART, 16 mode or 68 mode parallel bus interface

SC16C850LIBS
No Longer Manufactured
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

The SC16C850L is a 1.8 V, low power, single channel Universal Asynchronous Receiver and Transmitter (UART) used for serial data communications. Its principal function is to convert parallel data into serial data and vice versa. The UART can handle serial data rates up to 5 Mbit/s. The SC16C850L is functionally (software) compatible with the SC16C650B. SC16C850L can be programmed to operate in extended mode (see Section 6.2) where additional advanced UART features are available. The SC16C850L UART provides enhanced UART functions with 128-byte FIFOs, modem control interface, and IrDA encoder/decoder. On-board status registers provide the user with error indications and operational status. System interrupts and modem control features may be tailored by software to meet specific user requirements. An internal loopback capability allows on-board diagnostics.

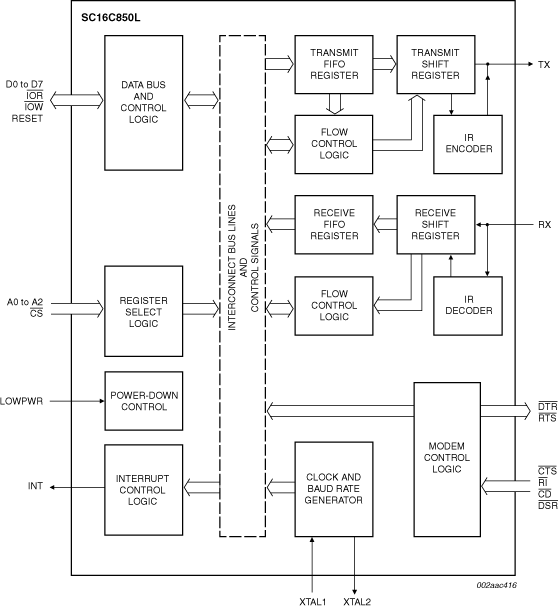

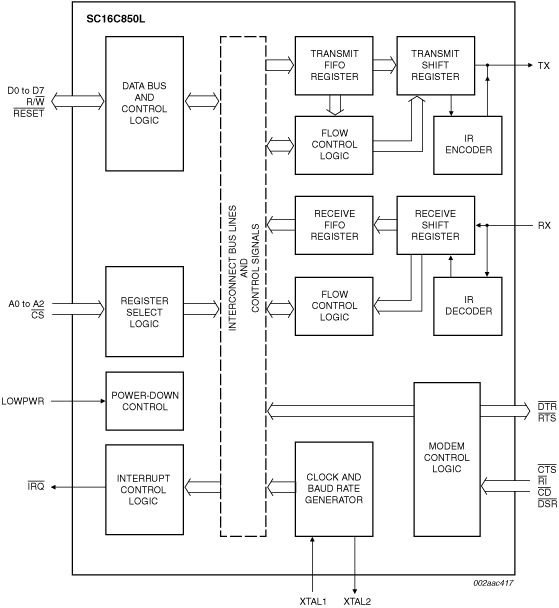

The SC16C850LIBS with Intel (16 mode) or Motorola (68 mode) bus host interface operates at 1.8 V and is available in a very small (Micro-UART) HVQFN32 package.

The SC16C850LIET with Intel (16 mode) bus host interface operates at 1.8 V and is available in a very small TFBGA36 package.

Buy/Parametrics

1 result

Exclude 1 NRND

Part

Show description

CAD Model

SC16C850LIBS
Data Sheet

Replacement part(s): SC16C850SVIBS

N true 0 PSPSC16C850LIBSen 6 Application Note Application Note t789 3 Data Sheet Data Sheet t520 1 Packing Information Packing Information t935 2 en_US en_US en Data Sheet Data Sheet 1 1 6.0 English 1442053466408718559742 PSP 373.0 KB None None documents None 1442053466408718559742 /docs/en/data-sheet/SC16C850L.pdf 373000 /docs/en/data-sheet/SC16C850L.pdf SC16C850L documents N 2015-09-12 1.8 V single UART, 5 Mbit/s (max.) with 128-byte FIFOs, infrared (IrDA) and 16 mode or 68 mode parallel bus interface /docs/en/data-sheet/SC16C850L.pdf /docs/en/data-sheet/SC16C850L.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Oct 11, 2013 980000996212993340 Data Sheet Y N 1.8 V single UART, 5 Mbit/s (max.) with 128-byte FIFOs, infrared (IrDA) and 16 mode or 68 mode parallel bus interface Application Note Application Note 3 2 1.0 English 1442088851880717094494 PSP 84.0 KB None None documents None 1442088851880717094494 /docs/en/application-note/AN10353.pdf 84000 /docs/en/application-note/AN10353.pdf AN10353 documents N 2015-09-12 Application of UART in GPS navigation system /docs/en/application-note/AN10353.pdf /docs/en/application-note/AN10353.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 1, 2005 645036621402383989 Application Note Y N Application of UART in GPS navigation system 3 1.0 English 1442088993252705520551 PSP 100.9 KB None None documents None 1442088993252705520551 /docs/en/application-note/AN10319.pdf 100927 /docs/en/application-note/AN10319.pdf AN10319 documents N N 2016-07-11 AN10319 /docs/en/application-note/AN10319.pdf /docs/en/application-note/AN10319.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Aug 25, 2004 645036621402383989 Application Note Y N AN10319 4 2.0 English 1442087701083730025178 PSP 205.0 KB None None documents None 1442087701083730025178 /docs/en/application-note/AN10307.pdf 205000 /docs/en/application-note/AN10307.pdf AN10307 documents N 2015-09-12 UART to Bluetooth interfacing /docs/en/application-note/AN10307.pdf /docs/en/application-note/AN10307.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 11, 2004 645036621402383989 Application Note Y N UART to Bluetooth interfacing Packing Information Packing Information 2 5 2.0 English 1442131050934708909982 PSP 210.4 KB None None documents None 1442131050934708909982 /docs/en/packing/SOT617-1_128.pdf 210415 /docs/en/packing/SOT617-1_128.pdf SOT617-1_128 documents N N 2015-04-28 HVQFN32; Reel pack; SMD, 13", Turned Q2/T3 Standard product orientation Orderable part number ending ,128 or HP Ordering code (12NC) ending 128 /docs/en/packing/SOT617-1_128.pdf /docs/en/packing/SOT617-1_128.pdf Packing Information N 145666923842250347 2023-10-17 pdf N en Apr 28, 2015 145666923842250347 Packing Information Y N HVQFN32; Reel pack; SMD, 13", Turned Q2/T3 Standard product orientation Orderable part number ending ,128 or HP Ordering code (12NC) ending 128 6 1.0 English 1442131072252718689636 PSP 213.7 KB None None documents None 1442131072252718689636 /docs/en/packing/SOT617-1_115.pdf 213688 /docs/en/packing/SOT617-1_115.pdf SOT617-1_115 documents N N 2016-10-08 HVQFN32; Reel pack; SMD, 7"; standard product orientation Orderable part number ending, 115 or X Ordering code (12NC) ending 115 /docs/en/packing/SOT617-1_115.pdf /docs/en/packing/SOT617-1_115.pdf Packing Information N 145666923842250347 2024-04-19 pdf N en May 16, 2013 145666923842250347 Packing Information Y N HVQFN32; Reel pack; SMD, 7"; standard product orientation Orderable part number ending, 115 or X Ordering code (12NC) ending 115 false 0 SC16C850LIBS downloads en true 1 Y PSP Application Note 3 /docs/en/application-note/AN10353.pdf 2015-09-12 1442088851880717094494 PSP 2 Mar 1, 2005 Application Note None /docs/en/application-note/AN10353.pdf English documents 84000 None 645036621402383989 2022-12-07 /docs/en/application-note/AN10353.pdf Application of UART in GPS navigation system /docs/en/application-note/AN10353.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N Application of UART in GPS navigation system 84.0 KB AN10353 N 1442088851880717094494 /docs/en/application-note/AN10319.pdf 2016-07-11 1442088993252705520551 PSP 3 Aug 25, 2004 Application Note None /docs/en/application-note/AN10319.pdf English documents 100927 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN10319.pdf AN10319 /docs/en/application-note/AN10319.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N AN10319 100.9 KB AN10319 N 1442088993252705520551 /docs/en/application-note/AN10307.pdf 2015-09-12 1442087701083730025178 PSP 4 Aug 11, 2004 Application Note None /docs/en/application-note/AN10307.pdf English documents 205000 None 645036621402383989 2022-12-07 /docs/en/application-note/AN10307.pdf UART to Bluetooth interfacing /docs/en/application-note/AN10307.pdf documents 645036621402383989 Application Note N en None Y pdf 2.0 N UART to Bluetooth interfacing 205.0 KB AN10307 N 1442087701083730025178 Data Sheet 1 /docs/en/data-sheet/SC16C850L.pdf 2015-09-12 1442053466408718559742 PSP 1 Oct 11, 2013 Data Sheet None /docs/en/data-sheet/SC16C850L.pdf English documents 373000 None 980000996212993340 2022-12-07 /docs/en/data-sheet/SC16C850L.pdf 1.8 V single UART, 5 Mbit/s (max.) with 128-byte FIFOs, infrared (IrDA) and 16 mode or 68 mode parallel bus interface /docs/en/data-sheet/SC16C850L.pdf documents 980000996212993340 Data Sheet N en None Y pdf 6.0 N 1.8 V single UART, 5 Mbit/s (max.) with 128-byte FIFOs, infrared (IrDA) and 16 mode or 68 mode parallel bus interface 373.0 KB SC16C850L N 1442053466408718559742 Packing Information 2 /docs/en/packing/SOT617-1_128.pdf 2015-04-28 1442131050934708909982 PSP 5 Apr 28, 2015 Packing Information None /docs/en/packing/SOT617-1_128.pdf English documents 210415 None 145666923842250347 2023-10-17 N /docs/en/packing/SOT617-1_128.pdf HVQFN32; Reel pack; SMD, 13", Turned Q2/T3 Standard product orientation Orderable part number ending ,128 or HP Ordering code (12NC) ending 128 /docs/en/packing/SOT617-1_128.pdf documents 145666923842250347 Packing Information N en None Y pdf 2.0 N N HVQFN32; Reel pack; SMD, 13", Turned Q2/T3 Standard product orientation Orderable part number ending ,128 or HP Ordering code (12NC) ending 128 210.4 KB SOT617-1_128 N 1442131050934708909982 /docs/en/packing/SOT617-1_115.pdf 2016-10-08 1442131072252718689636 PSP 6 May 16, 2013 Packing Information None /docs/en/packing/SOT617-1_115.pdf English documents 213688 None 145666923842250347 2024-04-19 N /docs/en/packing/SOT617-1_115.pdf HVQFN32; Reel pack; SMD, 7"; standard product orientation Orderable part number ending, 115 or X Ordering code (12NC) ending 115 /docs/en/packing/SOT617-1_115.pdf documents 145666923842250347 Packing Information N en None Y pdf 1.0 N N HVQFN32; Reel pack; SMD, 7"; standard product orientation Orderable part number ending, 115 or X Ordering code (12NC) ending 115 213.7 KB SOT617-1_115 N 1442131072252718689636 true Y Products
