Multimedia Applications Processors - Dual CAN, High Performance, Low Power, Arm9™ Core
The i.MX286 has all the advantages of the low power, high-performance i.MX283 with an extra level of connectivity features by offering dual CAN support. The i.MX286 is suitable for a wide range of applications such as Human-Machine Interfaces (HMI) for Appliances, Building Contol, Factory Automation, Printers, Security Panels and factory robotics displays. Get started today building the next great portable product based on the i.MX286.
Product Details

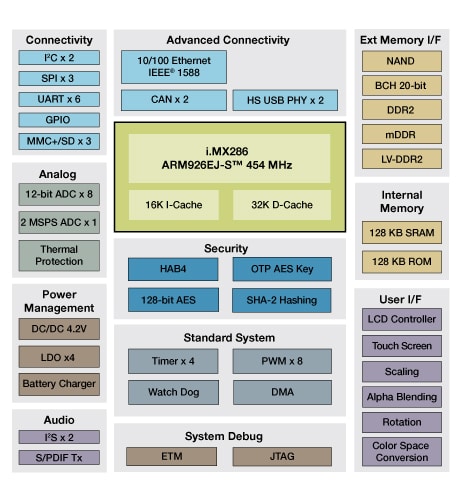

Block Diagram
Features
- 454MHz Arm926EJ-S™ core with 16KB/32KB Cache
- PMU with high efficiency on-chip DC/DC, supports Li-Ion batteries
- 10/100 IEEE® 1588 Ethernet with RMII support
- Dual CAN interfaces
- LCD Controller with Touchscreen
- NAND support – SLC/MLC and eMMC 4.4 managed
- Hardware BCH (up to 20-bit correction)
- 200 MHz 16-bit DDR2, LV-DDR2, mDDR external memory support
- Dual High-speed USB with embedded PHY
- 8 General purpose 12-bit ADC channels and single 2 Msps ADC channel
- Temperature sensor for thermal protection
- Multiple connectivity ports (UARTs, SSP, SDIO, SPI, I2C, I2S)
- 3.3V I/O, 10 year lifetime (Industrial)
- Package
and Temperature
- 289 BGA 14x14mm .8mm
- -20C to +70C (Consumer)
- -40C to +85C (Industrial)
- This product is included in NXP's product longevity program, with assured supply for a minimum of 15 years after launch
