S08SE Evaluation and Demonstration Board

DEMO9S08SE8

Roll over image to zoom in

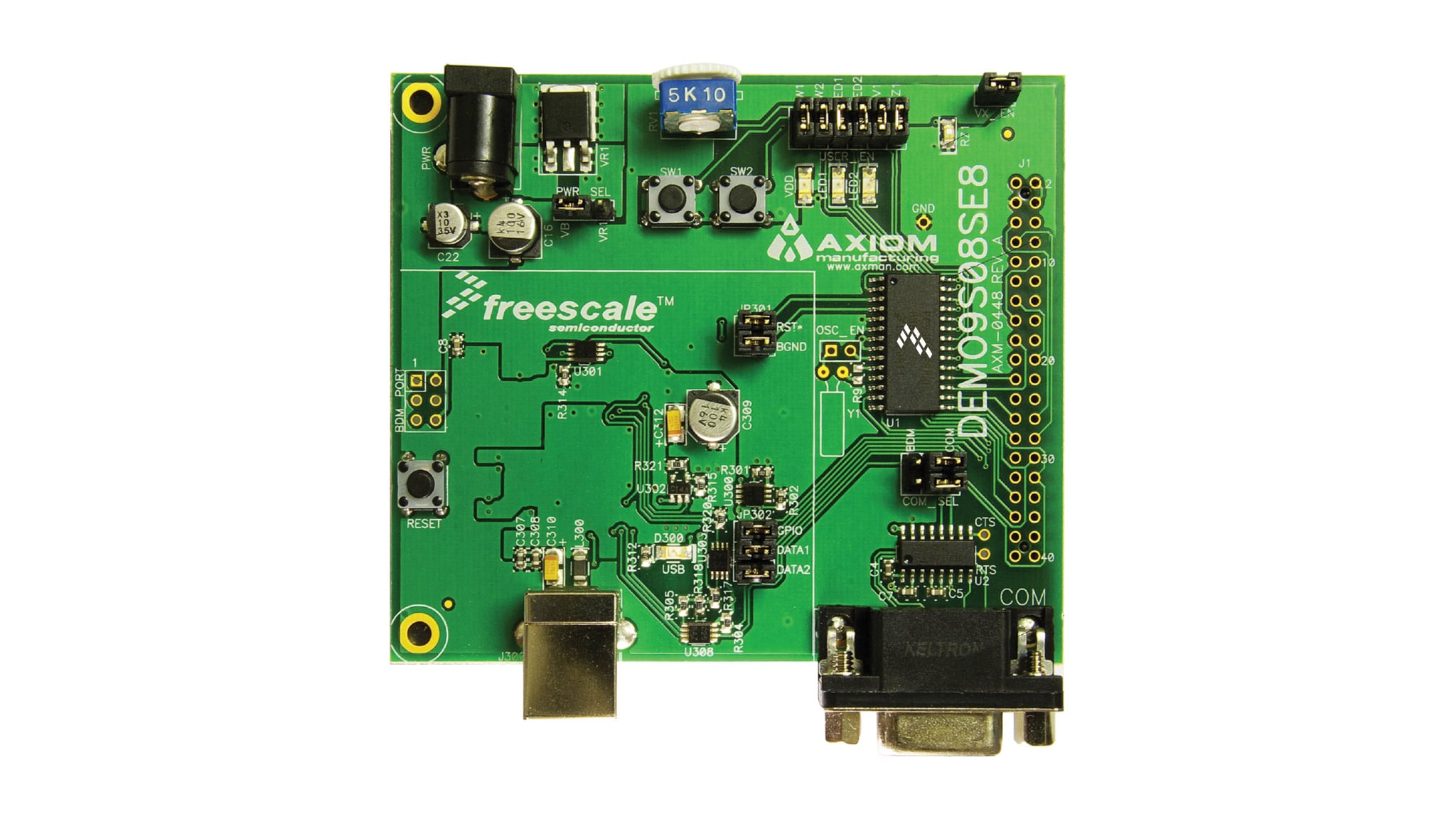

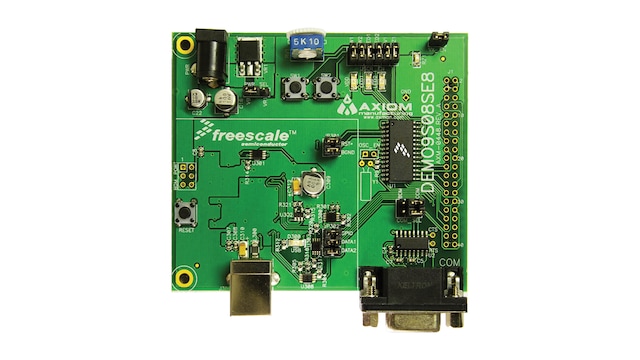

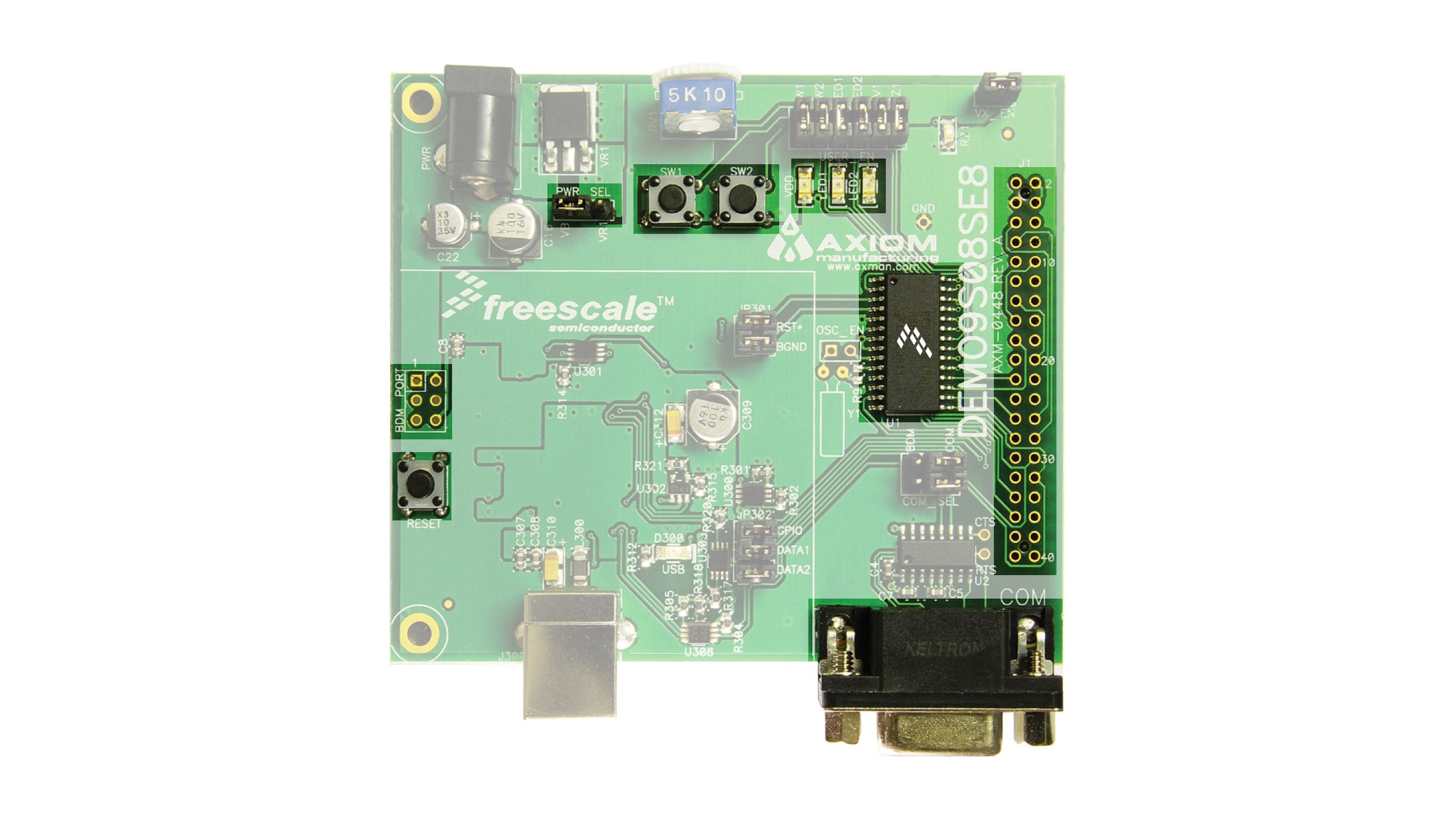

The DEMO9S08SE8 is an evaluation or demonstration board for the MC9S08SE8 microcontroller.

Development of applications is quick and easy with the integrated USB-BDM, sample software tools, and examples. An optional BDM_PORT port is also provided to allow use of a BDM_PORT cable. A 40-pin connector allows connecting the DEMO9S08SE8 board to an expanded evaluation environment.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08SE: 8-bit General Purpose SE MCUs

Features

Processor

  • MC9S08SE8 CPU, 28SOIC
  • External 32.768 kHz Clock Oscillator (not installed)

Connectivity

  • Integrated USB-BDM
  • RS-232 Serial Port w/ DB9 Connector
  • 32-pin MCU I/O Connector
  • 2.0 mm Barrel Connector
  • BDM_PORT Pin Header (not installed)
  • DB9 Serial Connector
  • USB-B Connector

Power Management

  • Power Input Selection Jumper

Components

  • 3 Push Switches; 2 User, 1 Reset
  • 3 LED Indicators; 2 User, 1 VDD
  • Jumpers
