Demonstration Board for 8-bit FL family | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

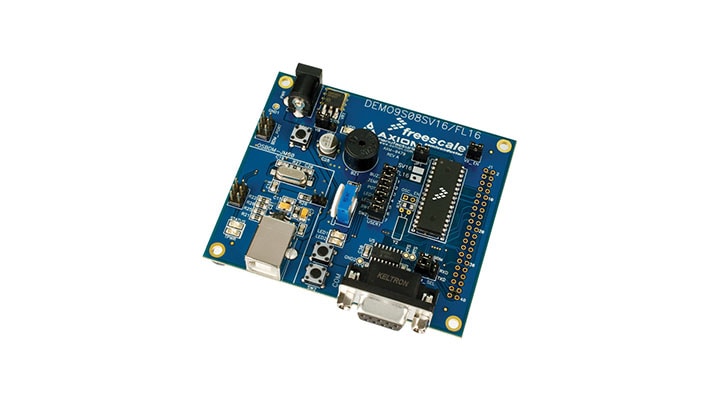

The DEMO9S08FL16 demonstration kit includes everything required to complete an entire project using the FL16/8 family with 32SDIP FL16 soldered.

Enables quick and easy application development
Integrates open-source USB-BDM sample software tools and examples
Optional port provided to allow use of a BDM_PORT cable
Provides access to all IO signals on the target MCU

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

S08FL: 8-bit Cost-Effective FL16/8 MCUs

Documentation

Quick reference to our documentation types.

4 documents

^{User Guide}
DEMO9S08SV16/FL16 User GuideFeatured

PDFRev 0Aug 13, 2009303.1 KBDEMO9S08SVFL16UGEnglish
^{Quick Reference Guide}
DEMO9S08FL16 - Quick Reference GuideFeatured

PDFRev 0Aug 13, 2009982.4 KBDEMO9S08FL16QSGEnglish
^{Supporting Information}
DEMO9S08SVFL16 Top Silk

PDFRev 0Aug 27, 200948.7 KBDEMO9S08SVFL16TSEnglish
^{Supporting Information}
DEMO9S08SVFL16 Default Shunt Placement

PDFRev 0Aug 27, 2009388.6 KBDEMO9S08SVFL16DSPEnglish

Design Resources

Design Files

Quick reference to our design files types.

1 design file

^{Printed Circuit Boards and Schematics}
DEMO9S08FL16/SV16 Schematics

PDFRev 0Aug 13, 2009 00:00:00200.8 KBDEMO9S08SVFL16SCH
