SOT2086-1: HVQFN116

Overview

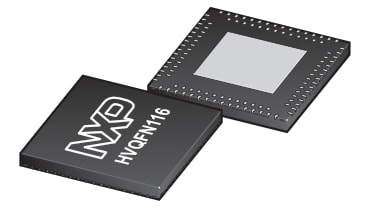

HVQFN116, thermal enhanced very thin quad flat package, no leads, 116 terminals, 0.5 mm pitch, 9 mm x 9 mm x 0.85 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT2086-1	HVQFN116	surface mount	quad	HVQFN	9 x 9 x 0.85	116	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA01710D		2022-04-03

Products

Part	Description	Quick access
IW611HN		View parametrics
IW612HN		View parametrics
AW611HN		View parametrics
