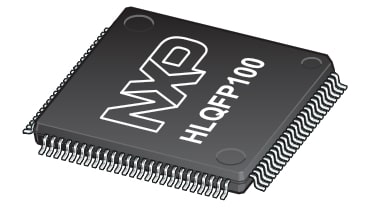

SOT1570-6: HLQFP100

Overview

HLQFP100, plastic, thermal enhanced low profile quad flat package; 100 terminals; 0.5 mm pitch; 14 mm x 14 mm x 1.4 mm body

Package Version	Package Name	Mount	Terminal Position	Package Style	Dimensions	Termination Count	Material
SOT1570-6	HLQFP100	surface mount	quad	HLQFP	14 x 14 x 1.4	100	plastic

Manufacture Code	Reference Codes	Issue Date
98ASA01897D		2023-09-07

Products

Part	Description	Quick access
MCXN546VNLT		View parametrics
MCXN947VNLT		View parametrics
MCXN547VNLT		View parametrics
MCXN946VNLT		View parametrics
MCXN236VNLT		View parametrics
MCXN235VNLT		View parametrics
