Getting Started with the C9KEAZ128Q80 Evaluation Board

Run your favorite terminal application to view the serial output from the MCU's UART (the recommended settings are: 115200 baud rate 8 data bits, no parity, 1 stop bit)
Open the device manager and look under the "Ports" group to define the port number of the C9KEAZ128Q80 evaluation board's virtual COM port.

Follow these steps if you are unsure on how to use the terminal application to display information sent from your NXP development platform's virtual serial port: Tera Term Tutorial, PuTTY Tutorial

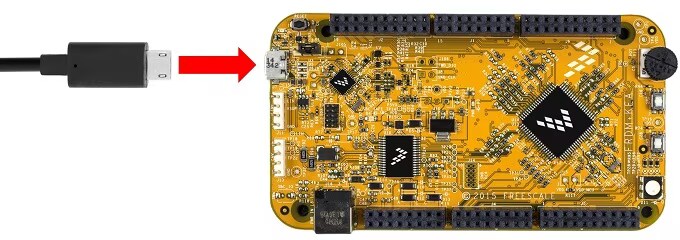

2.1 Plug the USB Cable

2.2 Try Demos

Your C9KEAZ128Q80 evaluation board comes pre-loaded with two demos:

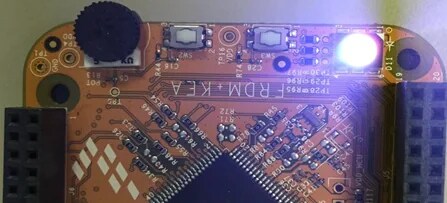

• DEMO 1 = LED blinking with interactivity using the onboard potentiometer.
  The LED will blink faster and then switch colors when the potentiometer is turned.
• DEMO 2 = LED brightness and dim
  by pressing the user button, which uses the ADC and potentiometer

Learn how to create a new project in S32 Design Studio for Arm^® and the basics to load your own code by running an easy example code.

3.1 Create an application for the C9KEAZ128Q80 Evaluation Board

3.2 Create a New S32DS Project

Create a new project in your workspace and load the configuration for your C9KEAZ128Q80 evaluation board.

3.3 Create, Build and Run your Application

Create a "hello world" code within minutes and watch it working in your C9KEAZ128Q80 evaluation board.

Tera Term open source terminal emulation application

1. Download Tera Term from SourceForge and run the installer.
2. Select the serial option once you launch Tera Term.
   A COM port will be automatically populated in the list if the C9KEAZ128Q80 evaluation board is plugged.
3. Configure the serial port settings (using the COM port number identified earlier) by going to Setup > Serial Port and change the settings to 115200 baud rate, 8 data bits, no parity and 1 stop bit.
4. Verify the open connection by checking the title bar in the Tera Term application:

PuTTY application terminal emulation application

1. Download PuTTY and run the installer.
2. Launch PuTTY by either double-clicking on the *.exe file you downloaded or from the Start menu, depending on the type of download you selected.

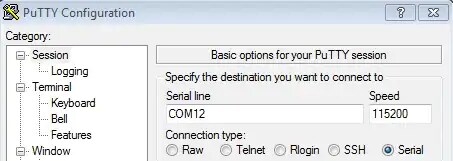

3. Configure the serial port settings by selecting the Serial radio button and enter the selected COM port number and change the settings to 115200 baud rate.

4. Click Open to open the serial connection.
   Verify the open terminal window once enter the correct COM port and plug the C9KEAZ128Q80 evaluation board.


   Note: If the configuration is not correct, PuTTY will alert you.
