S08 Sensorless BLDC Control

SENSORLESS-BLDC-ESC

Roll over image to zoom in

Sensorless BLDC control under ultra-high supply voltage (up to 18 V) is frequently required in many applications such as drone ESC and DC fan. This reference design is based on NXP's highly-integrated 8-bit S08 microcontroller MC9S08SU8/16. With its compact design, the BLDC control board can achieve great performance at a very low cost.

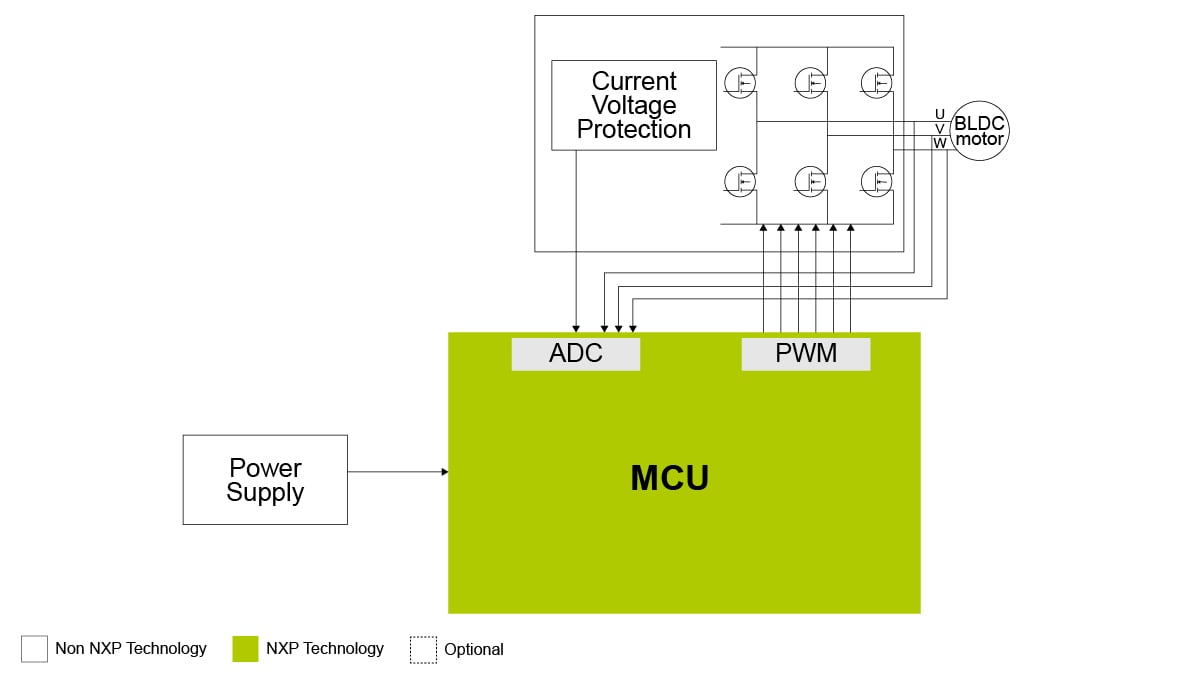

Block Diagram

Sensorless BLDC Control

S08 Sensorless BLDC Control Reference Design
Get diagram PDF

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08SU: 8-bit Ultra High Voltage Motor Control SU MCUs

Features

  • Compact PCB design (80 x 37 mm)
  • 3x P+N MOSFET pair
  • Single PWM duty control
  • 3x phase comparator for zero-crossing detection
  • Over current/voltage protection (OCP and OVP)
  • Interfaces
    • I2C
    • SCI
    • PWT
  • Debugging
    • Real-time in-circuit debug through S08/RS08 or HCS12 BDM interface
    • FreeMASTER debug tool

Buy Options

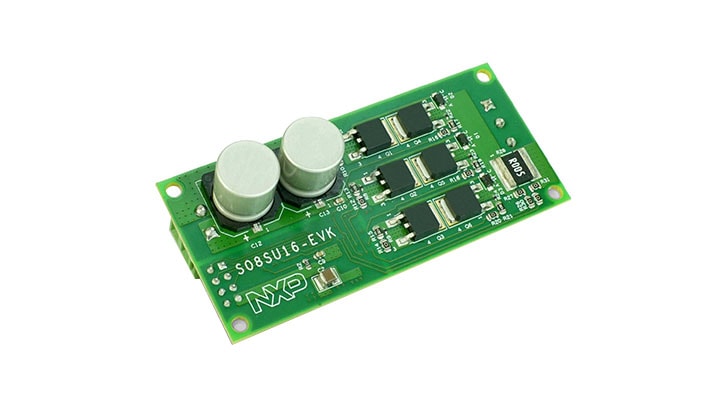

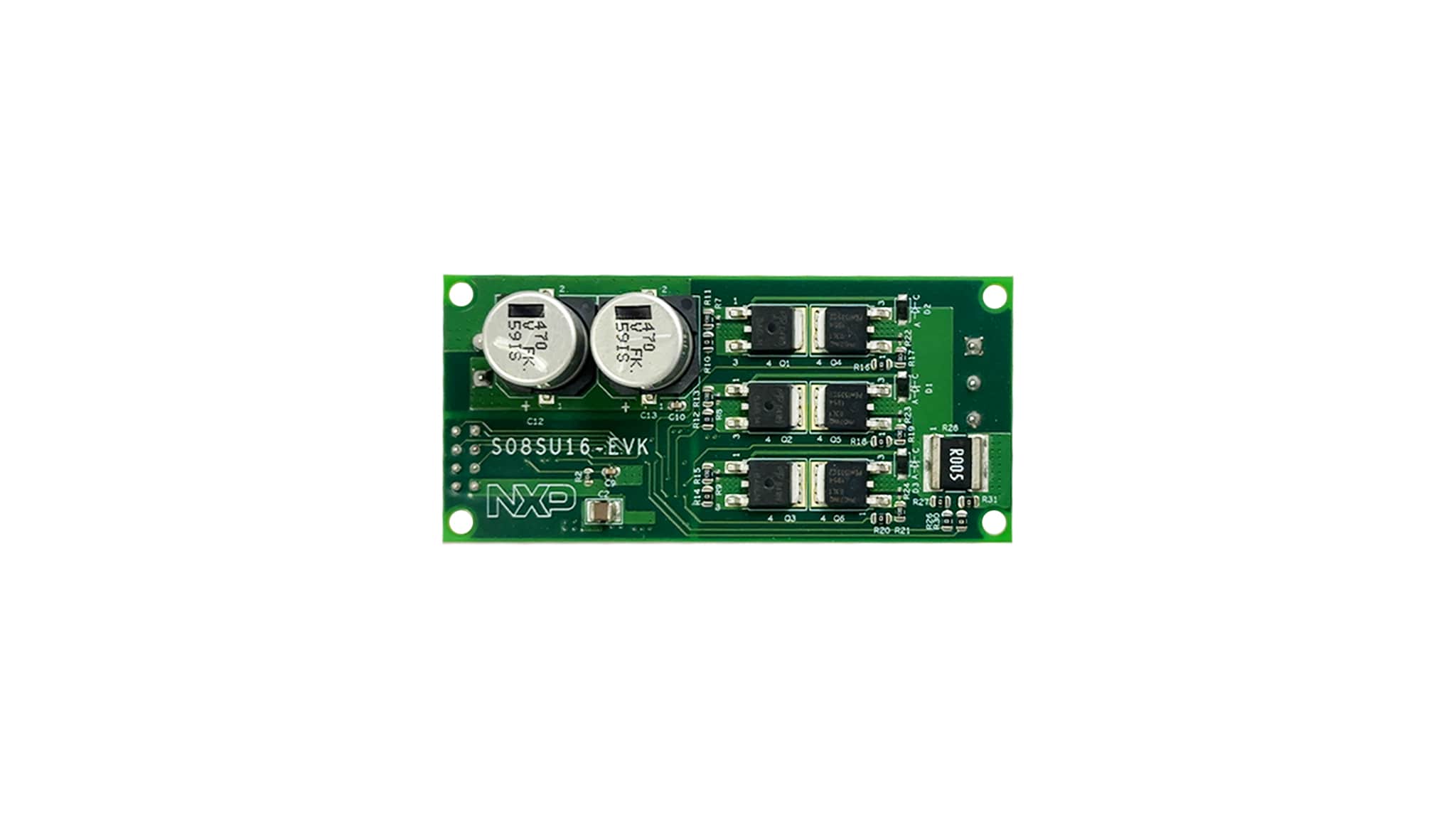

S08SU16-EVK-Image

Click to expand

  • S08SU16-EVK
    Active

  • S08SU16-EVK.

  • Kit contains:

    • Evaluation board
  • $34.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
