LPC8N04 MCU-based IoT Sensor Node with Integrated NFC

IoT-Sensor-Node-with-Integrated-NFC

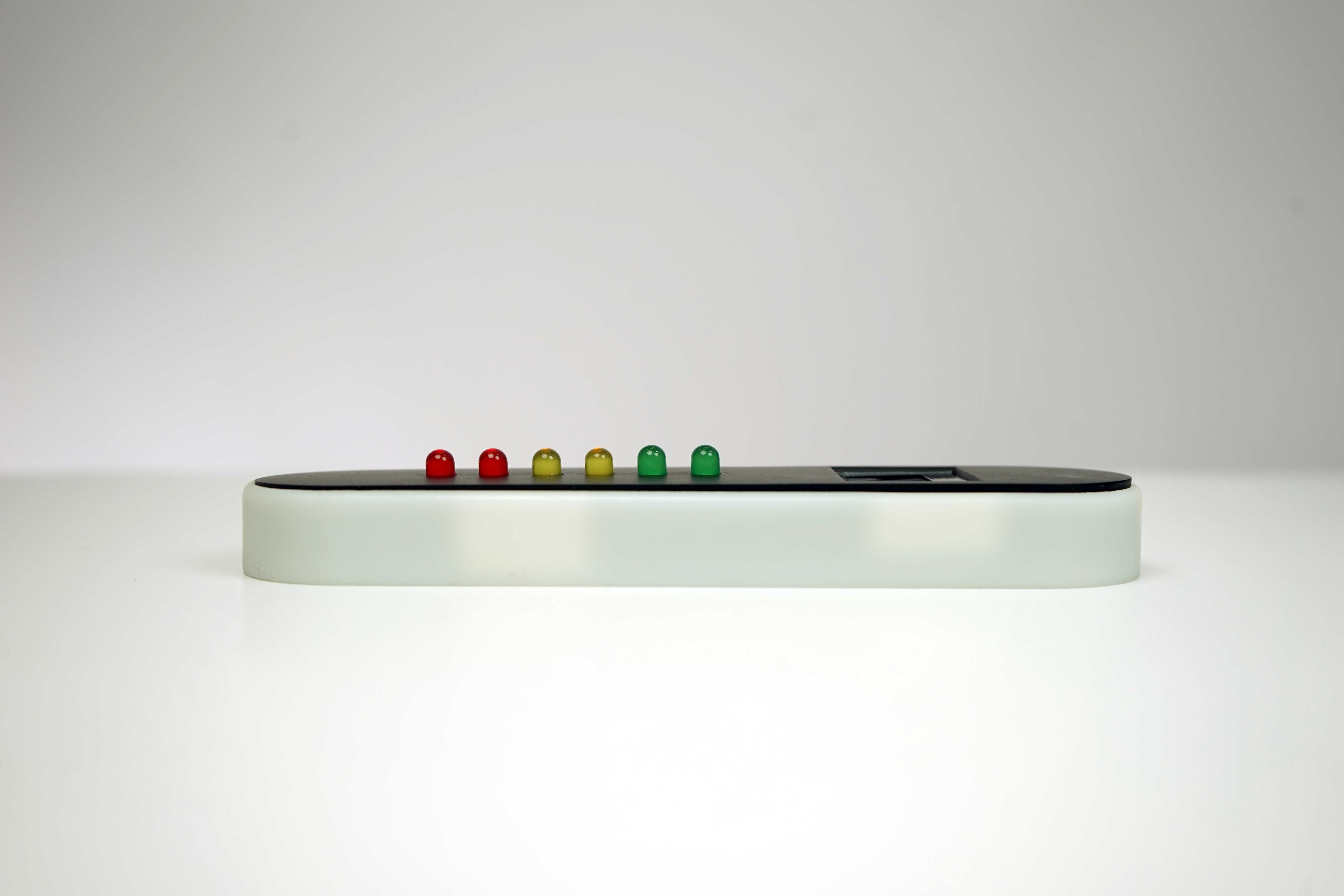

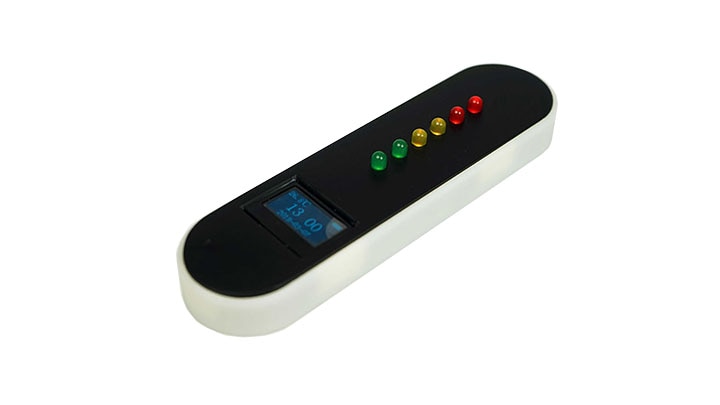

Roll over image to zoom in

The LPC8N04 MCU-based IoT sensor node with integrated NFC is a battery-powered single-chip reference design. It has been designed to incorporate NFC tagging capabilities while providing the functionalities of a microcontroller. This combination allows easy read/write capabilities and enables the possibility to add external sensors used for IoT applications in a low cost and low power solution.

Block Diagram

IoT Sensor Node with Integrated NFC Block Diagram

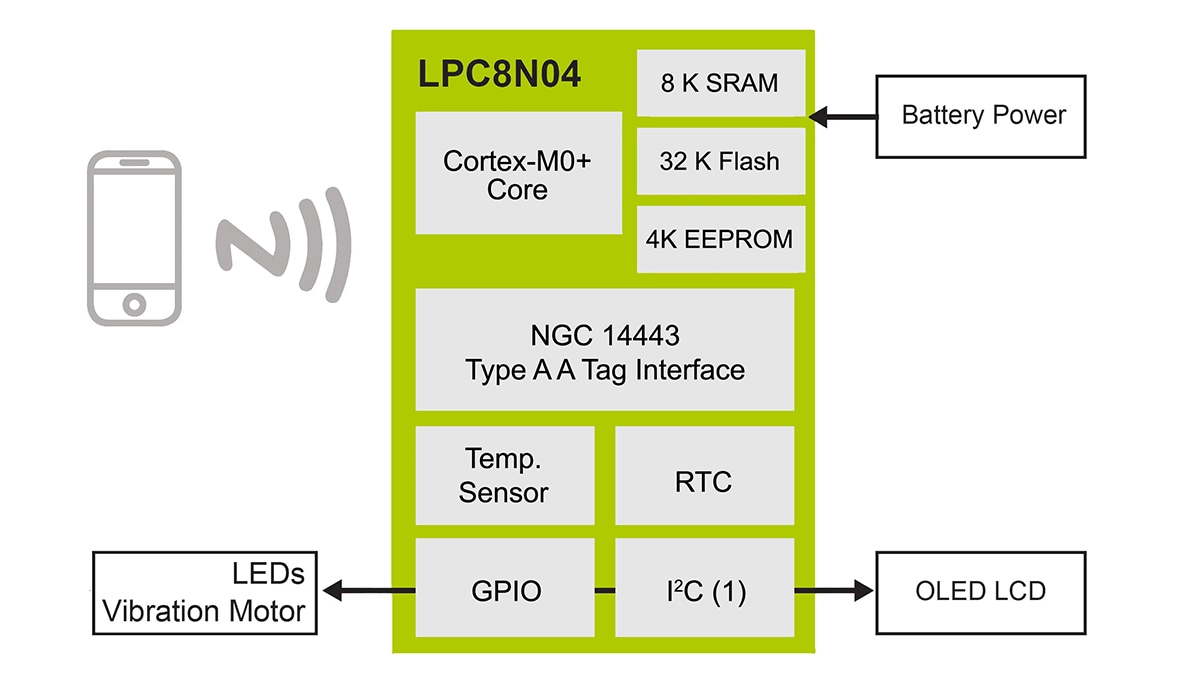

LPC8N04-MCU Based IoT Sensor Node Reference Design Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

LPC800 Arm Cortex-M0+

  • LPC8N04: Low-Cost Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Peripherals

  • Integrated NFC 14443 type A interface, which allows communication using an Android phone
  • I²C for OLED LCD control
  • General-purpose input/outputs for LED controls, while more flexibility is provided by the GPIOs themselves

Clock

  • Integrated real-time clock (RTC) for accurate timing

Sensor

  • An integrated highly accurate temperature sensor

Power

  • Low-power modes for power saving

Design Features

  • Cellphone pairing via the NFC interface
  • Alarm with sound notification
  • Temperature measurement and history tracking, as well as LED indicators to show the temperature scale

Buy Options

OM40002-Image

Click to expand

  • OM40002
    Active

  • LPC8N04 Development Kit.

  • $22.94 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 57
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
