PCF85063BTL SPI Real-Time Clock Demo Board

OM11059 Active

Roll over image to zoom in

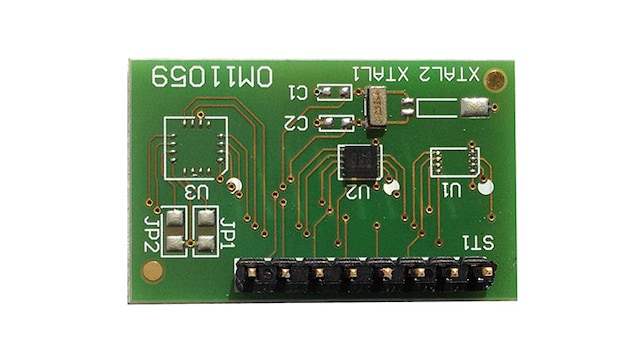

OM11059 is an evaluation/demo board for the SPI RTC PCF85063BTL to be used in the design phase of any project

Product Details

Supported Devices

Analog and Mixed Signal

Real-Time Clocks

  • PCF85063B: Tiny Real-Time Clock/Calendar with Alarm Function and SPI-Bus

Features

Key Features

  • No need to solder the tiny package to a breadboard 100 mil connector for straight forward connections
  • By default a quartz with 7 pF is mounted

User Components

  • Additional landing pads are available on the board to take a quartz in a tubular package

Connectivity

  • The OM11059 allows to easily demonstrating operation of the PCF85063BTL with SPI-bus interface

Buy Options

OM11059-Image

Click to expand

  • OM11059
    Active

  • Demoboard for the SPI RTC PCF85063BTL.

  • $41.25 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
