MC9S08LH 8-bit Segment LCD Tower System Module

TWR-S08LH64

Roll over image to zoom in

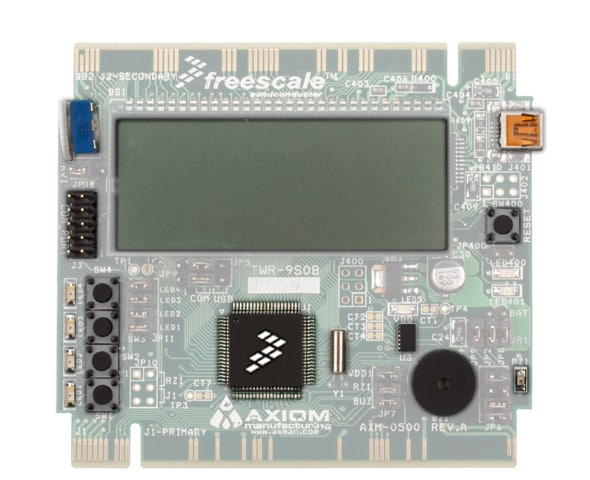

The TWR-S08LH64 module is a development board for the MC9S08LH64 segment LCD controller that features a 3-axis accelerometer ADC input and a 2x28 segment LCD display. The integrated OSBDM allows a designer to communicate with the board and target device using only a USB cable.

The TWR-S08LH64 operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08LH: 8-bit with LCD Driver LH MCUs

Features

Microcontroller

  • MC9S08LH64 MCU
  • 32,768 Hz Crystal

Connectivity

  • Mini-B USB connector
  • RS-232 port
  • NXP® 3-axis accelerometer ADC input to MCU

Sensors

  • Light sensor with LP filter and op amp

Display

  • 2 x 28 segments LCD display
  • The TWR-S08LH64 board contains a MC9S08LL, an Energy-Efficient Product Solution by NXP

User Components

  • 5 K One Turn Potentiometer
  • Buzzer
  • 1 reset push button and 4 push switches
