Automotive Ethernet Switch Application Board

OM14510-SJA1105TJP Archived
  • This page contains information on a product that is no longer manufactured (discontinued). Specifications and information herein are available for historical reference only.

Roll over image to zoom in

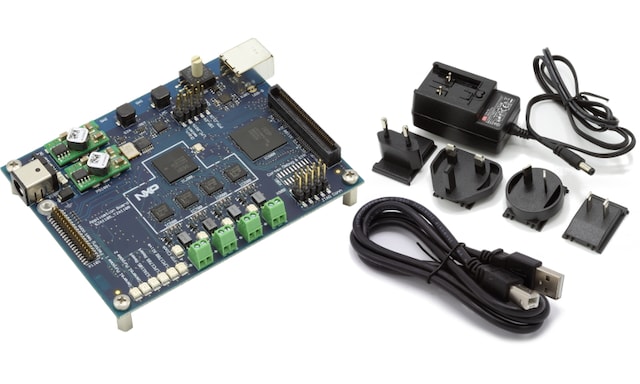

The SJA1105TJP Application Board is an evaluation system that supports the SJA1105EL and SJA1105TEL Automotive Ethernet Switches in conjunction with the TJA1100HN Ethernet PHY Transceiver. The board enables the evaluation of the SJA1105 Switch via PC or other controller and facilitates early development of the software required for the switch applications.

Product Details

Features

General Specifications

  • Directly configure the switch via PC
  • Quickly evaluate the switch functionalities and performance
  • Enables fast prototyping of an ECU
  • Shows all features of the SJA1105EL and SJA1105TEL
