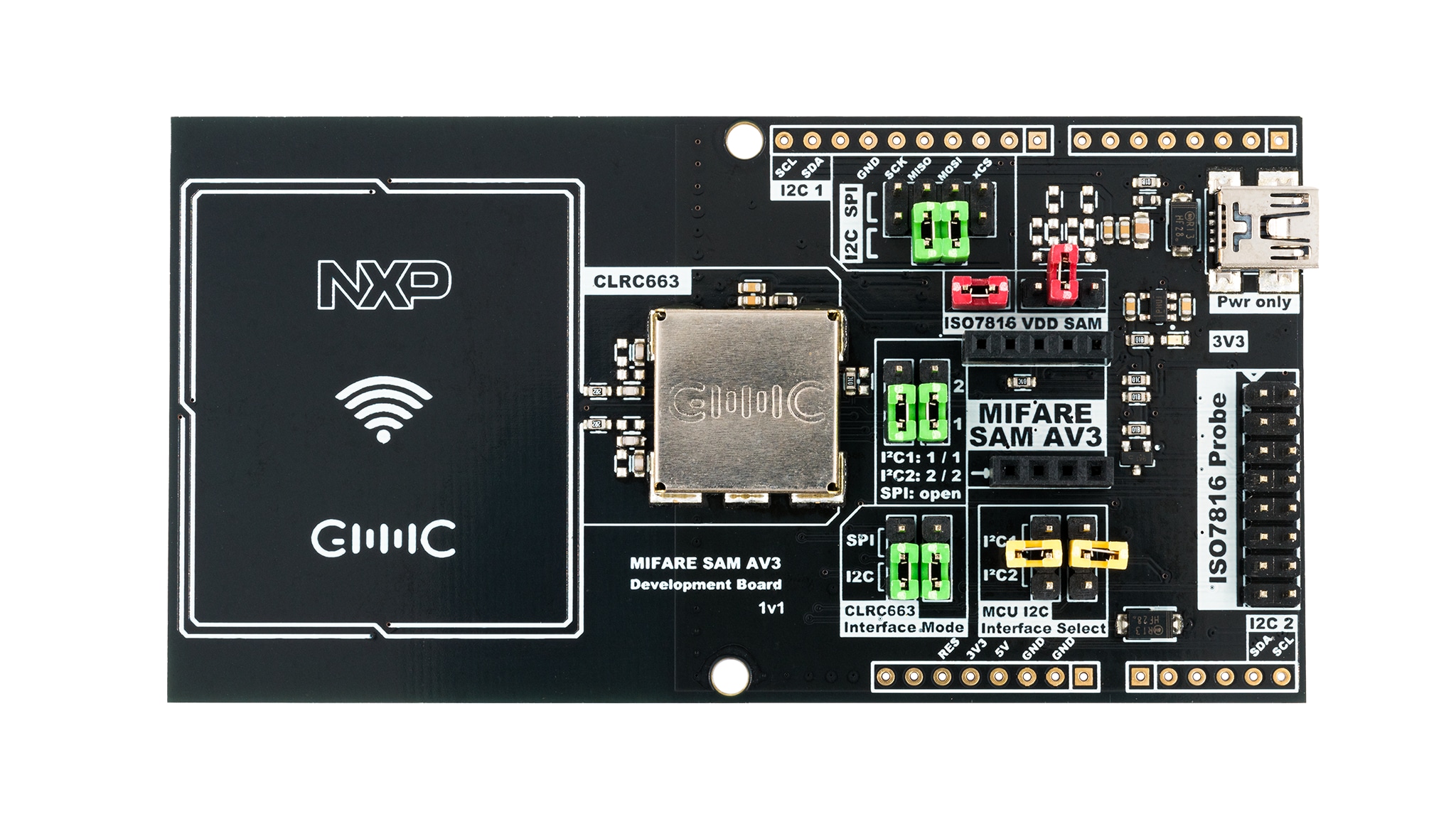

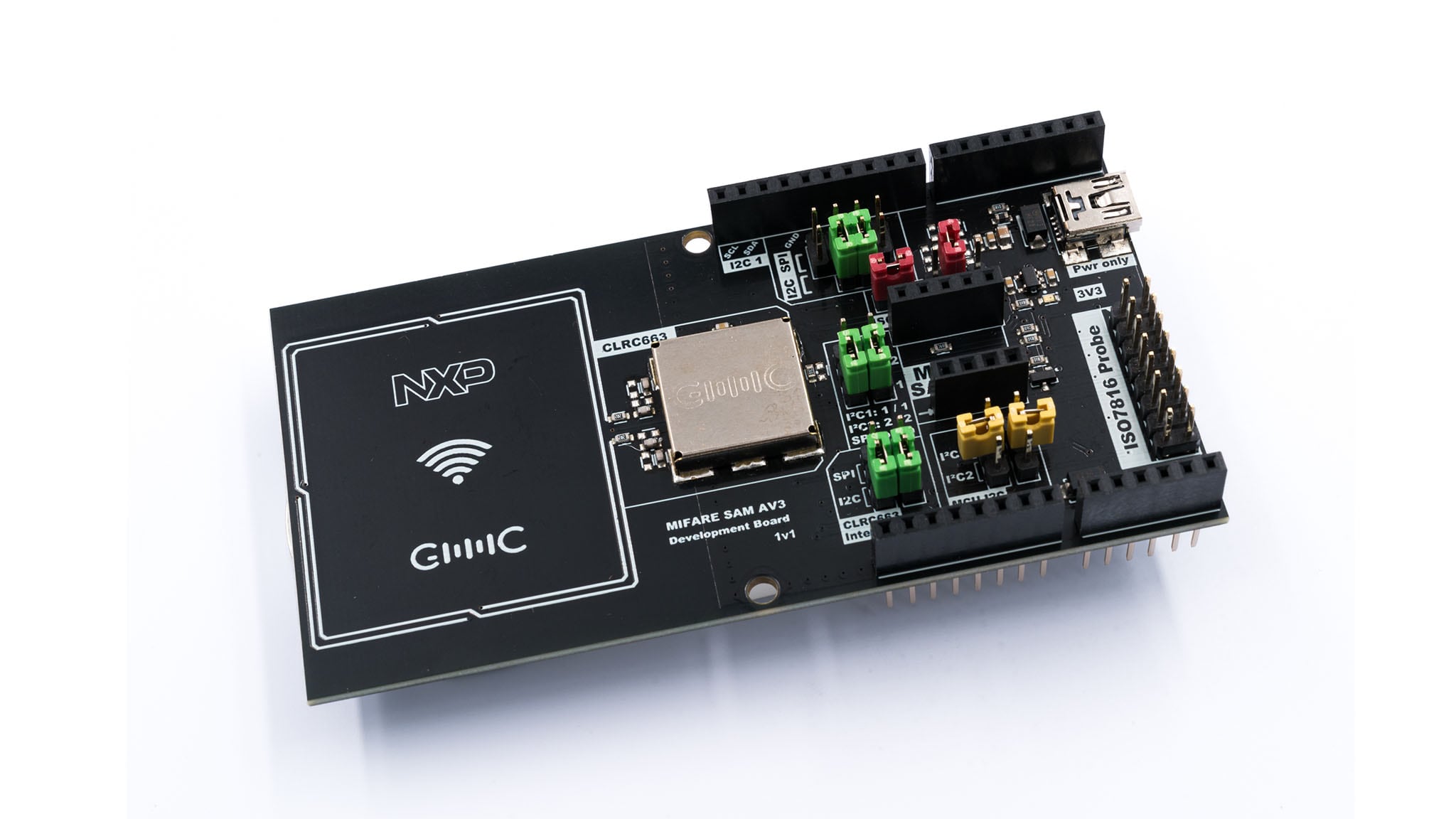

MIFARE SAM AV3 Development Kit

MIFSAMAV3-DEV-KIT Active

Roll over image to zoom in

Develop your secure devices for wide variety of applications such as transport ticketing, access control and process automation by using the MIFARE SAM AV3 Development Kit. Test the product features, various modes of operation, interfaces and configuration settings as well as exploring the board features for quick and easy design development and evaluation.

Supported Devices

RFID

MIFARE SAM

Features

Feature List

  • MIFARE SAM AV3 in HVQFN package supporting ISO/IEC 7816 or I²C interface
  • CLRC663 with PCB antenna for ISO/IEC
  • 14443 and ISO/IEC 15693 contactless reader functionality
  • Arduino shield shaped board integrated for easy interfacing to an external board
  • 2 modes of operation for SAM AV3: X-Mode and S-Mode
  • 2 host interfaces for SAM AV3: ISO/IEC 7816 or I²C
  • I²C and SPI interface options to CLRC663

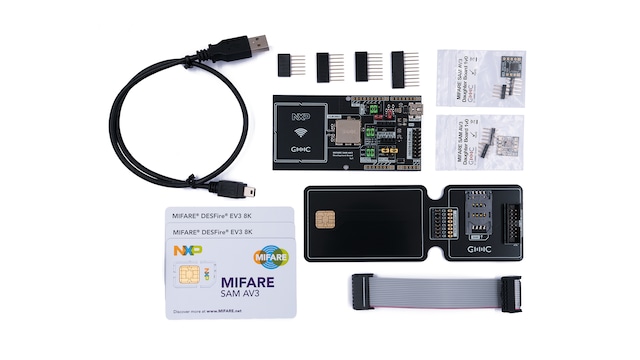

Box Content

  • 1 x MIFARE SAM AV3 Arduino Shield
  • 2 x MIFARE SAM AV3 Add-On Board
  • 1 x ISO/IEC 7816 Smart Card Reader Adapter
  • 1 x Adapter Connection Cable
  • 2 x MIFARE DESFire EV3 Smart Card
  • 1 x MIFARE SAM AV3 Card

Buy Options

SAMAV3-CLRC663-Image

Click to expand

  • SAMAV3-CLRC663
    Active

  • MIFARE SAM AV3 Development Kit.

  • Kit Contains

    • 1x MIFARE SAM AV3 Arduino Shield
    • 2x MIFARE SAM AV3 Add-On Board
    • 1x ISO/IEC 7816 Smart Card Reader Adapter
    • 1x Adapter Connection Cable
    • 2x MIFARE DESFire EV3 Smart Card
    • 1x MIFARE SAM AV3 Card
  • $128.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 35
    • Shipping: Normally ships 1-2 business days
ADD TO CART
