Freedom Board for MC33HB2000AES,10 A, H-Bridge Motor Driver, HVQFN 28 6x6

FRDM-HB2000ESEVM Active

Roll over image to zoom in

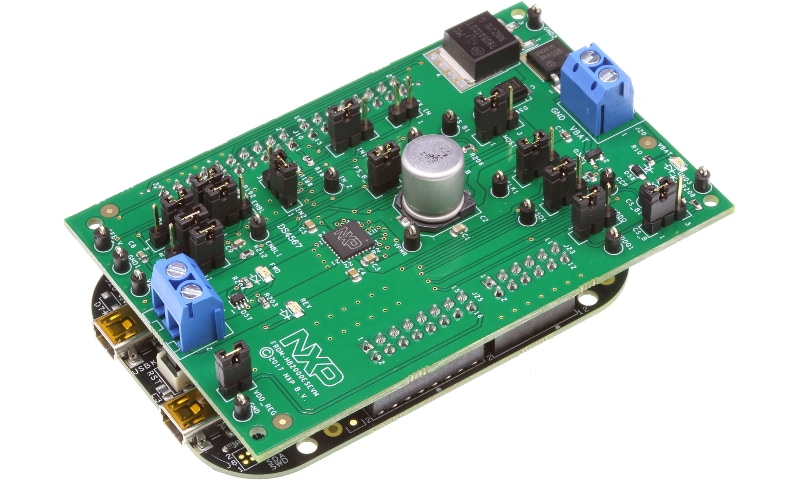

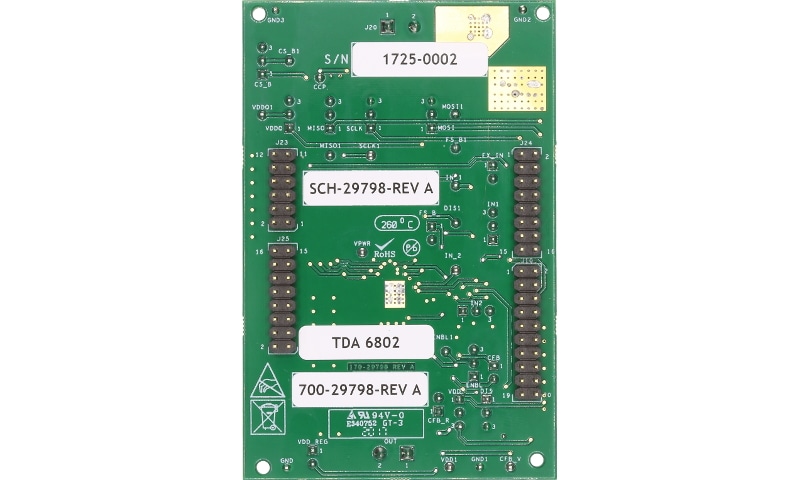

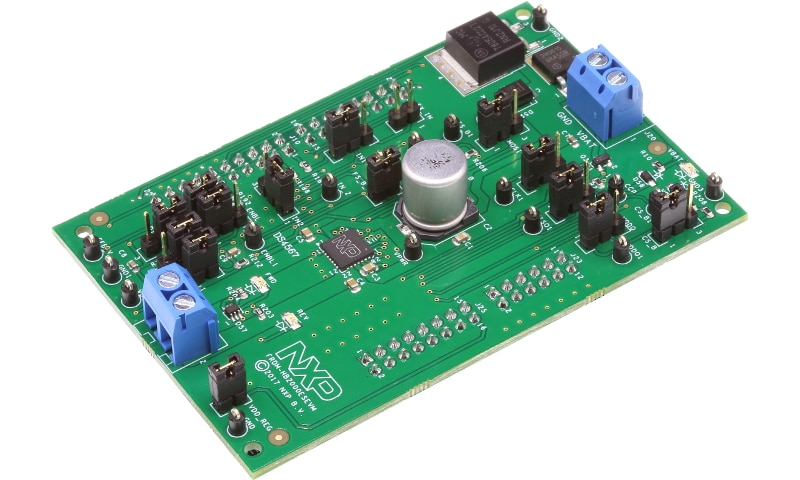

The FRDM-HB2000ESEVM Evaluation Board (EVB) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33HB2000 H-Bridge device.

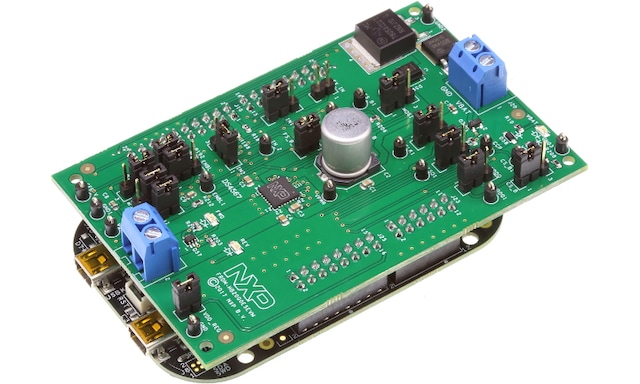

The EVB parallel input can be easily controlled through lab equipment, any MCU with GPIOs and also FRDM-KL25Z board connected to a PC’s USB port. The board also supports SPI communication to configure, control as well as monitor the status of MC33HB2000.

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • HB2000: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

Features

Power Management

  • Transient voltage suppressor to handle system level transients
  • Built-in reverse battery protection
  • Built-in voltage regulator to supply logic level circuitry
  • Low ESR capacitor to reduce ripple in the power supply
  • Transient voltage suppressor to handle system level transients

User Components

  • LEDs to indicate the supply status and direction of the motor

Test Points

  • Test points to allow probing of signals

Support

  • Compatible with NXP's FRDM-KL25Z Platform

General Specifications

  • Motor control with direction and speed/torque control
  • Real-time current monitoring to implement closed loop control

Buy Options

FRDM-HB2000ESEVM-Image

Click to expand

  • FRDM-HB2000ESEVM
    Active

  • Freedom Evaluation Board for HB2000, HVQFN 28 6x6, 10 A, H-Bridge, Programmable Brushed DC Motor Driver.

    • FRDM-HB2000ESEVM
    • FRDM-KL25Z
    • Quick reference card
  • $133.40 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
