Freedom Board for MC33HB2000EK H-Bridge Motor Driver

FRDM-HB2000-EVM Active

Roll over image to zoom in

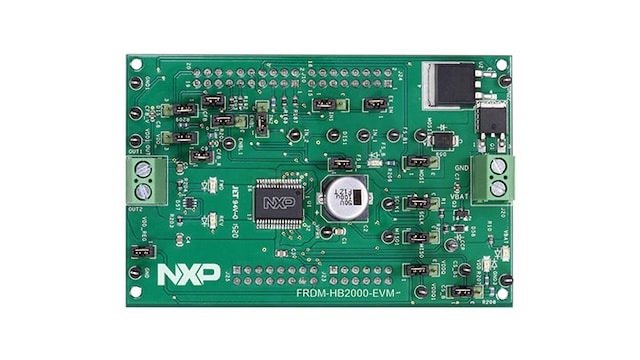

The FRDM-HB2000-EVM Evaluation Board (EVB) is an easy-to-use circuit board that allows the user to exercise all the functions of the MC33HB2000 H-Bridge device. HSOP32 + RDSon 235 mOhm max. The EVB parallel input can be easily controlled through lab equipment, any MCU with GPIOs and also FRDM-KL25Z board connected to a PC’s USB port. The board also supports SPI communication to configure, control as well as monitor the status of MC33HB2000.

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • HB2000: SPI Programmable 10 A H-Bridge Brushed DC Motor Driver

Features

Power Management

  • Transient voltage suppressor to handle system level transients
  • Built in voltage regulator to supply logic level circuitry
  • Low ESR capacitor to reduce ripple in the power supply
  • Transient voltage suppressor to handle system level transients
  • Built in reverse battery protection

Support

  • Compatible with NXP’s FRDM-KL25Z Platform

Test Points

  • Test points to allow probing of signals

User Components

  • LEDs to indicate the supply status and direction of motor

General Specifications

  • Real time current monitoring to implement closed loop control
  • Motor control with direction and speed/torque control

Buy Options

FRDM-HB2000-EVM-Image

Click to expand

  • FRDM-HB2000-EVM
    Active

  • Freedom Evaluation Board for HB2000, SOIC 32, 10 A, H-Bridge, Programmable Brushed DC Motor Driver.

    • FRDM-HB2000-EVM
    • FRDM-KL25Z
    • Quick reference card
  • $124.20 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
