Class D Audio Amplifier Reference Design

CLASS-D-AUDIO-AMPLIFIER

Roll over image to zoom in

The 1000 W class-D audio amplifier reference design provides an example for an audio amplifier along with a push-pull power converter. It operates using the KV1x Tower® series platform or k64 Freedom board.

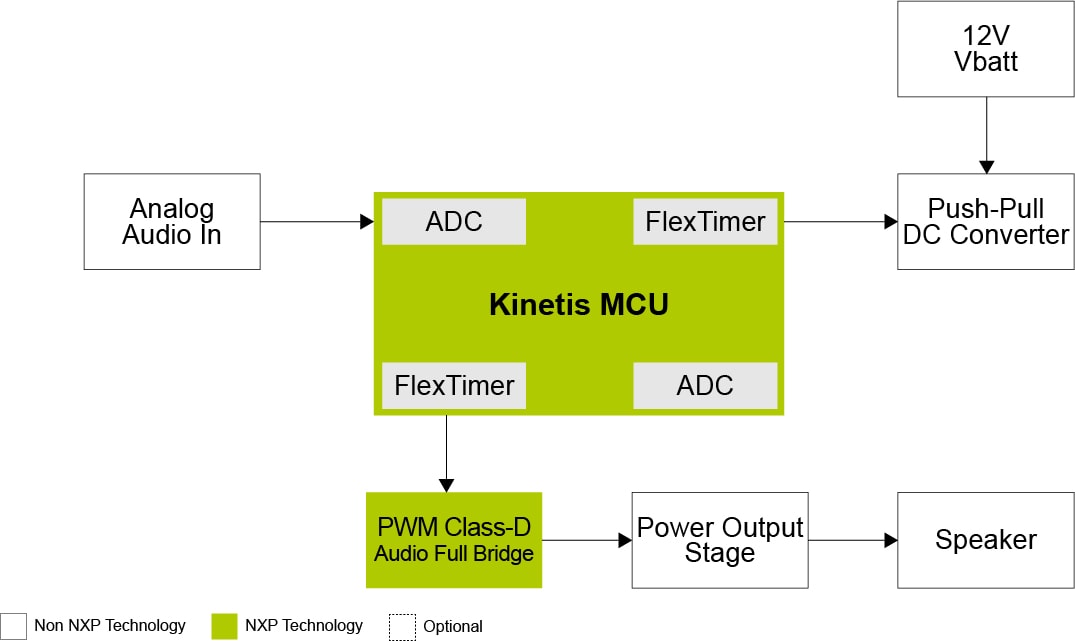

Block Diagram

ClassD Audio Amplifier

Class D Audio Amplifier Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

K6x Ethernet

  • K64_120: Kinetis® K64-120 MHz, 256 KB SRAM Microcontrollers (MCUs) Based on Arm® Cortex®-M4 Core

Features

General

  • FlexTimer controls the gate drivers for power MOSFETs adding extra protections, such as deadtime insertion, fault control, initialization, and polarity control
  • Low CPU load, leaving processor available for application enhancement
