The S32K3 Family of 32-bit microcontrollers (MCUs) offers Arm® Cortex®-M7-based MCUs in single, dual and lockstep core configurations. S32K3 Family offers scalability in number of cores, memory and peripherals, ensuring high-performance and functional safety compliant with ISO 26262 up to ASIL D.
S32K3 Family provides a comprehensive end-to-end solution for development and production. S32K3 MCUs feature a hardware security engine (HSE) with NXP firmware, enable firmware over-the-air (FOTA) updates and include ISO 26262 compliant Real-Time Drivers (RTD) suitable for both AUTOSAR® and non-AUTOSAR applications.
Through compatibility with the NXP S32 Automotive Platform, S32K3 Family enables seamless software reuse and flexibility across applications in body, zone control and electrification.
S32K3 MCUs are available in various package types, including MAPBGA, LQFP and HDQFP, providing flexibility in integration and design. Also, the NXP HDQFP package reduces the package footprint by up to 55 % compared to a standard QFP package.
Choose a diagram:
| Tools | Reference Software | Standard Software | Premium Software | |
|---|---|---|---|---|
|
S32 Design Studio for S32 Platform |
LIN Stack |
Inter-Platform Comms Framework (IPCF) HSE Standard Firmware |
S32 Safety Software Framework (SAF) for S32K3xx Structural Core Self-Test (SCST) HSE Premium Firmware |
|
|
Software Package Manager Use the Automotive Software Package Manager to navigate the offerings, view product briefs and release notes and easily download software. Launch Software Package Manager |
NXP Support Contact an NXP representative for more information. Support Home |
SafeAssure NDA group Available through NXP Secure Content. Request Access |
||
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
S32K1 Microcontrollers for Automotive General Purpose

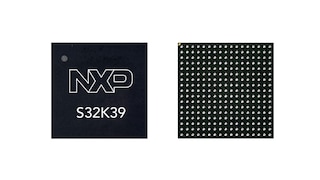

S32K39/37/36 Microcontrollers for Electrification Applications
Quick reference to our part nomenclature.
1-10 of 27 results
Include 0 NRND
Part | Order | CAD Model | Status | Core: Number of cores (SPEC) | Core Type | Lockstep | Operating Frequency [Max] (MHz) | Flash (kB) | RAM (kB) | External memory/Connectivity interfaces | Serial Communication | I2S | GPIO | CAN FD | Number of LIN Channels | Ethernet Type | Human Machine Interface | Security | Timer Features | ADC [Number, bits, channels] | QSPI | FOTA | Supply Voltage [Min to Max] (V) | Ambient Operating Temperature (Min to Max) (℃) | Package Type | Package Pitch (mm) | SafeAssure Functional Safety | ASIL Certification | Budgetary Price excluding tax | AEC-Q100 Temperature Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 1 | Arm Cortex-M7 | No | 120 | 512 | 112 | — | 2 x I²C, 4 x SPI, 4 x UART | — | 38 | 3 | 4 | — | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | — | Yes | 2.7 to 5.5 | -40 to 125 | LQFP48 | 0.5 | ISO 26262 | up to ASIL B | 1K @ US$2.80 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 120 | 512 | 112 | — | 2 x I²C, 4 x SPI, 4 x UART | — | 84 | 3 | 4 | — | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | — | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP100 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$3.12 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 120 | 1000 | 128 | — | 2 x I²C, 4 x SPI, 4 x UART | — | 38 | 3 | 4 | — | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | — | Yes | 2.7 to 5.5 | -40 to 125 | LQFP48 | 0.5 | ISO 26262 | up to ASIL B | 1K @ US$2.89 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 120 | 1000 | 128 | — | 2 x I²C, 4 x SPI, 4 x UART | — | 84 | 3 | 4 | — | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | — | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP100 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$3.21 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 120 | 2000 | 192 | — | 1 x I3C, 2 x I²C, 4 x SPI, 8 x UART | — | 77 | 6 | 8 | — | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | — | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP100 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$3.62 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 120 | 2000 | 192 | — | 1 x I3C, 2 x I²C, 4 x SPI, 8 x UART | — | 143 | 6 | 8 | — | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | — | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP172 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$4.00 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 160 | 4000 | 512 | — | 16 x UART, 2 x I²C, 6 x SPI | 2 | 218 | 6 | 16 | 100M | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 3, 12, 24 | 1 | Yes | 2.7 to 5.5 | -40 to 125 | LFBGA257 | 0.8 | ISO 26262 | up to ASIL B | 1K @ US$7.19 | grade 1 | |||
Active | 1 | Arm Cortex-M7 | No | 160 | 4000 | 512 | — | 16 x UART, 2 x I²C, 6 x SPI | 2 | 142 | 6 | 16 | 100M | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 3, 12, 24 | 1 | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP172 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$6.81 | grade 1 | |||
Active | 2 | Arm Cortex-M7 | No | 160 | 2000 | 256 | — | 2 x I²C, 4 x SPI, 4 x UART | 2 | 85 | 4 | 4 | 100M | flexible input/output | HSE_B | — | — | 1 | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP100 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$5.59 | grade 1 | |||
Active | 2 | Arm Cortex-M7 | No | 160 | 2000 | 256 | — | 2 x I²C, 4 x SPI, 4 x UART | 2 | 142 | 4 | 4 | 100M | flexible input/output | HSE_B | BCTU, LCU, eMIOS | 2, 12, 24 | 1 | Yes | 2.7 to 5.5 | -40 to 125 | HDQFP172 | 0.65 | ISO 26262 | up to ASIL B | 1K @ US$5.98 | grade 1 |
