Name: FS84/FS85/FS66 12 V Safety SBC Evaluation Board for Automotive Applications
Price: 177.10 USD

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

KITFS85FRDMEVM provides easy customer development of the FS84/FS85 and FS66 family devices. It's targeting 12 V automotive applications.

This kit can be connected to the FlexGUI software which allows the customer to modify the registers and develop an OTP (One Time Programing) configuration. Then the FS85 chip on the board is programmed. This offers the customer the flexibility to configure the OTP for his application needs. The OTP can be burned 3 times.

The board contains a superset device (MC33FS8530AE0S), allowing tests on all the FS84/FS85 and FS6600 derivatives.

Design Files

Software

Product Details

Supported Devices

Power Management

System Basis Chips

FS85: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL D
FS84: Safety System Basis Chip for S32 Microcontrollers, Fit for ASIL B
FS6600: Safety System Basis Chip for S32S2 Microcontroller, Fit for ASIL D

Features

Connectivity

Embedded USB connection for easy connection to software GUI (access to SPI/I2C bus, IOs, RSTB, FS0B, INTB, Debug, MUX_OUT, regulators)
USB connection for register access, OTPemulation, and fuse

Power Management

VBAT power supply connectors (Jack and Phoenix)
VPRE output capability up to 6 A (external MOSFET)
VBUCK1/2 in standalone or multiphase mode, up to 3.6 A peak
VBUCK3 up to 3.6 A peak
VBOOST 5.0 V or 5.74 V, up to 400 mA
LDO1 and LDO2, from 1.1 V to 5 V, up to 400 mA
Ignition key switch

General Specifications

FS0B External Safety pin

Support

Support OTP fuse capabilities

Components

LEDs that indicate signal or regulator status

Buy Options

Click to expand

KITFS85FRDMEVM
FS84/FS85/FS66 12 V safety SBC evaluation board for automotive.
- KITFS85FRDMEVM board
- Power Supply mating connectors
- USB mini cable Type A Male / Type B Male

$177.10 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 9
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

3 documents

^{User Guide}
Getting Started with the KITFS85FRDMEVMGetting Started

HTMLAug 24, 2020GS-KITFS85FRDMEVMEnglish
^{User Guide}
UM11157, KITFS85FRDMEVM evaluation board - User guideGetting Started

PDFRev 3.0Dec 6, 201917.8 MBUM11157English
Sign in required
^{Product Brief}
PB_FS84_FS85C, Fail-safe system basis chip with multiple SMPS and LDO - Product brief

PDFRev 7.0May 7, 2021646.5 KBPB_FS84_FS85CEnglish

Design Resources

Related Hardware

Quick reference to our board types.

1 hardware offering

^{Evaluation and Development Boards}

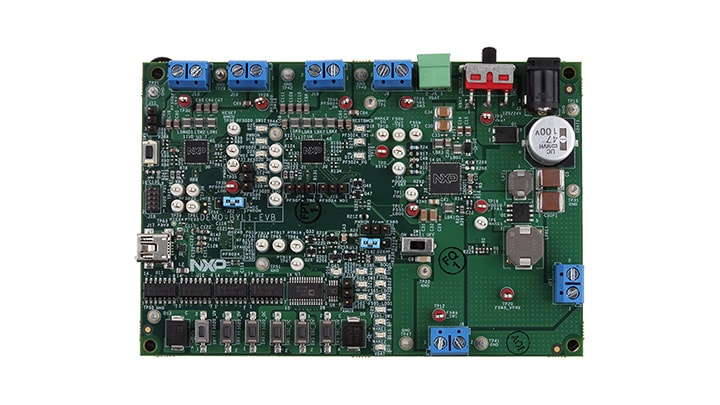

BYLink Multiprocessor Demo BoardActive
