i.MX 7Dual Processors Family

i.MX 7Dual Applications Processors | Dual Arm® Cortex®-A7 + Cortex-M4 | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Click over video to play

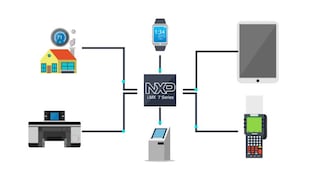

The i.MX 7Dual family of processors represents our latest achievement in high-performance processing for low-power requirements with a high degree of functional integration. These processors are targeted towards the growing market of connected devices. The i.MX 7Dual family of processors features our advanced implementation of the Arm® Cortex®-A7 core, which operates at speeds of up to 1.2 GHz, as well as the Arm Cortex-M4 core. The i.MX 7Dual family supports multiple memory types including 16/32-bit DDR3L/LPDDR2/LPDDR3-1066, Quad SPI memory, NAND, eMMC and NOR. Several high-speed connectivity connections include Gigabit Ethernet with AVB, PCIe and USB. Both parallel and serial Display and Camera interfaces are provided, as well as a way to directly connect to the Electrophoretic Displays (EPD).

i.MX 7 applications processors are part of NXP's EdgeVerse™ edge computing platform.

Data Sheet

Reference Manual

Product Details

Block Diagram

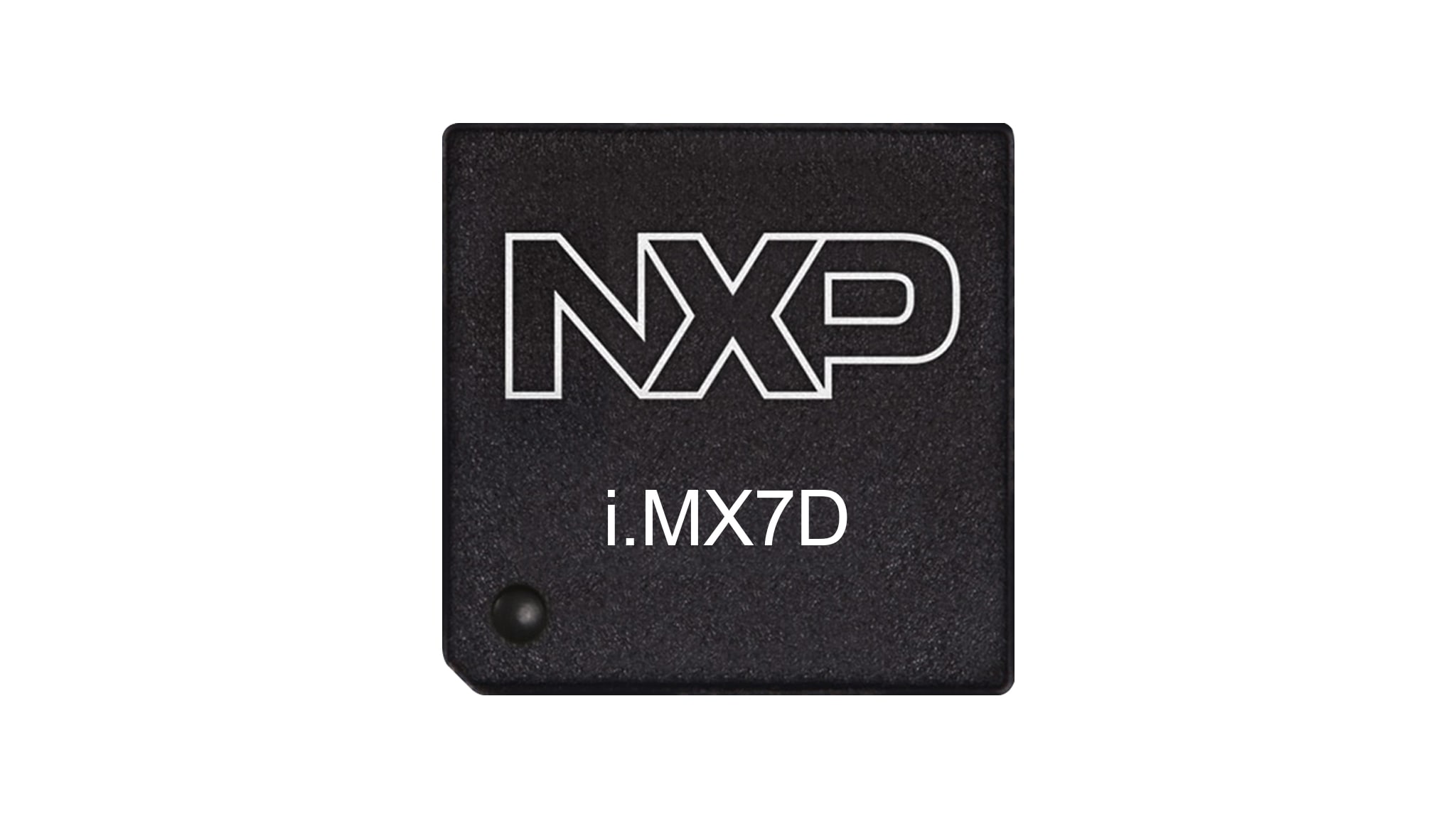

i.MX 7Dual Processors

Get diagram PDF

Features

Heterogeneous Multicore Processing Architecture, up to Dual Cortex-A7 and Cortex-M4 configuration
External Memory Support: DDR3/DDR3L/LPDDR2/LPDDR3
Flash Memory Support: NAND (60-bit ECC), Managed NAND (eMMC, eSD)
Electrophoretic Display (EPD) Controller
Dual Gigabit ETH controllers supporting AVB
Parallel RGB and MIPI DSI Display Interfaces
Parallel and MIPI CSI Camera Interfaces
256 KB SRAM
Quad SPI
Communication Ports (I²C, SAI, UART, SPI, SDIO, USB, PCIe)

Buy/Parametrics

Part Show description	Status	Core: Number of cores (SPEC)	Core Type	Operating Frequency [Max] (MHz)	L2 Cache (Max) (KB)	SRAM (kB)	External Memory Supported	Video/Display features	Camera Interfaces	USB Controllers	Serial Communication	Audio Specific Modules	Ethernet	PCIe	CAN	Package Type	Package Termination Count	Package Pitch (mm)	Junction Temperature (Min) (℃)	Junction Temperature (Max) (℃)
MCIMX7D2DVK12SD Data Sheet	Active	2	Arm Cortex-A7	1200	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	MIPI-CSI, MIPI-DSI, PCP, parallel RGB LCD controller	1 x MIPI-CSI-2, 1 x parallel CSI	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	0	85
MCIMX7D2DVM12SD Data Sheet	Active	2	Arm Cortex-A7	1200	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	MIPI-CSI, MIPI-DSI, PCP, parallel RGB LCD controller	1 x MIPI-CSI-2, 1 x parallel CSI	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	0	85
MCIMX7D3DVK10SD Data Sheet	Active	1, 2	Arm Cortex-A7, Arm Cortex-M4F	200, 1000	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	—	—	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	0	95
MCIMX7D3EVK10SD Data Sheet	Active	1, 2	Arm Cortex-A7, Arm Cortex-M4F	200, 1000	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	—	—	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	-20	105
MCIMX7D5EVK10SD Data Sheet	Active	2	Arm Cortex-A7	1000	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	MIPI-DSI, parallel RGB LCD controller	1 x MIPI-CSI-2, 1 x parallel CSI	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	2 x 1 Gbps + IEEE 1588	1 x PCIe 2.0	2	TFBGA488	488	0.4	-20	105
MCIMX7D5EVM10SD Data Sheet	Active	2	Arm Cortex-A7	1000	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	MIPI-CSI, MIPI-DSI, PCP, parallel RGB LCD controller	1 x MIPI-CSI-2, 1 x parallel CSI	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	-20	105
MCIMX7D7DVK10SD Data Sheet	Active	2	Arm Cortex-A7	1000	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	MIPI-CSI, MIPI-DSI, PCP, parallel RGB LCD controller	1 x MIPI-CSI-2, 1 x parallel CSI	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	0	95
MCIMX7D7DVM10SD Data Sheet	Active	2	Arm Cortex-A7	1000	512	256	DDR3 SDRAM, DDR3L SDRAM, ECC, LPDDR2 DRAM, LPDDR3 DRAM, NAND FLASH, NOR FLASH, QSPI	MIPI-CSI, MIPI-DSI, PCP, parallel RGB LCD controller	1 x MIPI-CSI-2, 1 x parallel CSI	3	1 x PCIe 2.0, 4 x I²C, 4 x SPI, 7 x UART	SAI	—	1 x PCIe 2.0	—	—	—	—	0	95

Design Resources

Design Files

Quick reference to our design files types.

5 design files

Models
BSDL file for i.MX 7D

ZIPRev 2May 17, 202415.3 KBIMX7D_BSDL

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IMX7D-IBIS Model

ZIPRev 20161010Jan 11, 201716.75 MBIMX7D_IBIS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IMX7-IBIS Model

ZIPRev 20161010Jan 11, 201716.74 MBIMX7_IBIS

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Design files for i.MX 7Dual

ZIPRev DMay 6, 20165.8 MBiMX7D-SABRE-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Printed Circuit Boards and Schematics
Design files, including hardware schematics, Gerbers, and OrCAD files for i.MX 7Dual

ZIPRev DMay 6, 20161.7 MBiMX7D-EVK-BRD-DESIGNFILES

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
