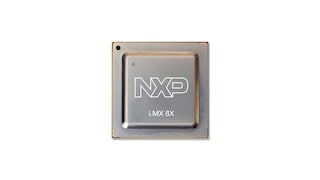

i.MX 8X Family – Arm^® Cortex^®-A35, 3D Graphics, 4K Video, DSP, Error Correcting Code on DDR

Roll over image to zoom in

Extending the scalable range of the i.MX 8 series, the i.MX 8X family is comprised of common subsystems and architecture from the higher-end i.MX 8 family, establishing a range of cost-performance scaling with pin-compatible options and a high level of software reuse. Built with high-level integration to support graphics, video, image processing, audio and voice functions, the i.MX 8X processor family is ideal for efficient performance requirements. Example applications include industrial automation and control, HMI, robotics, building control, automotive cluster, display audio, infotainment and telematics applications.

i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.

For additional information and sample availability, contact NXP support.

Data Sheet

Reference Manual

Product Details

Block Diagram

i.MX 8X Processors

Get diagram PDF

Features

Processor Complex

2x-4x Cortex-A35 cores
1x Cortex-M4F core for real-time processing
1x Tensilica^{^®} HiFi 4 DSP

Multimedia

2x-4x Vec4-Shader GPU, OpenGL^{^®} ES 3.1, OpenCL^™ 1.2 EP, OpenVG^™ 1.1, Vulkan^®
Video: 4K H.265 dec | 1080p H.264 enc / dec

Memory

16/32-bit DDR3L-1866 and LPDDR4-2400
1x Octal SPI or 2x Quad SPI
ECC Capabilities
- Cortex-A35 L1 cache parity
- Cortex-A35 L2 cache ECC
- ECC Protection on DDR interface

Display and Cameras

2x Combo MIPI DSI (4-lanes) / LVDS (1080p)
24-bit Parallel display I/F (WXGA)
SafeAssure^{^®} Fail-over capable display
1x 4-lane MIPI CSI2
1x parallel 8-bit CSI (BT.656)

Connectivity

2x SDIO3.0 [or 1x SDIO3.0 + 1x eMMC5.1]
USB 2.0 and 3.0 OTG support with PHY
2x Ethernet AVB MAC
3x CAN / CAN FD
MOST 25/50
PCIe 3.0 (1-lane) with L1 substate
1x 12-bit ADC (6-channels)
4x SPI, 1x ESAI, 4x SAI, 1x Keypad
4x I²C (High-speed), 4x I²C (Low-speed)
1x SPDIF

Security

High Assurance Boot, SHE
TRNG, AES-128, AES-256, 3DES, ARC4, RSA4096, SHA-1, SHA-2, SHA-256, MD-5
RSA-1024, 2048, 3072, 4096 and secure key storage
10 Tamper-pins (active and passive)
Inline Encryption Engine (AES-128)

Temperature

Automotive AEC-Q100 Grade 3 (-40^° to 125^° C Tj)
Industrial (-40^° to 105^° C Tj)

Advance Power Management

Recommended PMIC: PF8200: Power Management integrated circuit for i.MX 8 and i.MX 8X families

Part numbers include: MIMX8DX1AVLFZAC, MIMX8DX1AVOFZAC, MIMX8DX2AVLFZAC, MIMX8DX2AVOFZAC, MIMX8DX5AVLFZAC, MIMX8DX5CVLFZAC, MIMX8DX6AVLFZAC, MIMX8DX6CVLFZAC, MIMX8QX1AVLFZAC, MIMX8QX1AVOFZAC, MIMX8QX2AVLFZAC, MIMX8QX2AVOFZAC, MIMX8QX5AVLFZAC, MIMX8QX5CVLFZAC, MIMX8QX6AVLFZAC, MIMX8QX6CVLFZAC, MIMX8UX5CVLFZAC, MIMX8UX6CVLFZAC.

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Documentation

Quick reference to our documentation types.

1-5 of 39 documents

^{Data Sheet}
i.MX 8DualX Industrial Applications Processors - Data Sheet

PDFRev 1Jan 31, 20223.1 MBIMX8DXIECEnglish
Sign in required
^{Data Sheet}
i.MX 8DualX Automotive and Infotainment Applications Processors

PDFRev 4Jan 31, 20223.6 MBIMX8DXAECEnglish
Sign in required
^{Data Sheet}
i.MX 8QuadXPlus and 8DualXPlus Automotive and Infotainment Applications Processors

PDFRev 4Jan 31, 20223.4 MBIMX8QXPAECEnglish
Sign in required
^{Data Sheet}
i.MX 8QuadXPlus and 8DualXPlus Industrial Applications Processors - Data Sheet

PDFRev 1Jan 31, 20223.0 MBIMX8QXPIEC-DSEnglish
Sign in required
^{Reference Manual}
Security Reference Manual for i.MX8DualX/8DualXPlus/8QuadXPlus Application Processors

PDFRev 0Jan 6, 202119.0 MBIMX8QXPSRMEnglish
Sign in required
^{Reference Manual}
i.MX 8DualXPlus/8QuadXPlus Applications Processor Reference Manual

PDFRev 0May 14, 202055.1 MBIMX8DQXPRMEnglish, 中文
Sign in required
^{Application Note}
i.MX 8/RT MIPI DSI/CSI-2

HTML | PDFRev 1.1Aug 13, 202420.6 MBAN13573English, 中文
^{Application Note}
Demo Application to Generate Red/Black Blobs Using CAAM and Encrypt/Decrypt Data

PDFRev 2Mar 8, 2024174.6 KBAN12554English
Sign in required
^{Application Note}
Ethernet Controller Configuration on i.MX 8MP and i.MX 93 Processors

PDFRev 1Jan 10, 2024404.5 KBAN14149English, 中文
Sign in required
^{Application Note}
Understanding SECO Secure Storage and Non-Volatile Memory Management

HTML | PDFRev 1Nov 23, 2023202.3 KBAN14105English
^{Application Note}
i.MX ROMs Log Events

PDFRev 1Sep 21, 2023162.1 KBAN12853English
Sign in required
^{Application Note}
i.MX Encrypted Boot on AHAB-Enabled Devices

PDFRev 1Aug 25, 2023324.1 KBAN13994English
Sign in required
^{Application Note}
Secure Boot on AHAB Supported Devices

PDFRev 1Aug 14, 2023340.4 KBAN12312English, 中文
Sign in required
^{Application Note}
i.MX6/7/8 series USB Certification Guide

PDFRev 4Jun 8, 202331.0 MBAN12409English
^{Application Note}
How to Enable Linux BSP L5.4 on a New iMX8/8X Board

PDFRev 1May 26, 20232.8 MBAN13275English, 中文
^{Application Note}
Migration Guide from i.MX 8X B0 to i.MX 8X C0

PDFRev 1Mar 22, 2023169.6 KBAN12770English
^{Application Note}
Enabling DDR3L ECC Quick Boot Feature on i.MX 8QuadXPlus C0

PDFRev 0Mar 21, 2023413.7 KBAN13885English
Sign in required
^{Application Note}
AN12631: Normal and Secure Debug for i.MX8/8X Family of Applications Processors – Application Note

PDFRev 1Feb 20, 2023619.2 KBAN12631English
Sign in required
^{Application Note}
Using i.MX 8 Security Controller Signed Messages

PDFRev 0Nov 21, 2022255.5 KBAN13770English
Sign in required
^{Application Note}
ECC on i.MX 8 Series

PDFRev 0Apr 1, 2022751.9 KBAN13566English, 中文
^{Application Note}
Container Software Version Impact on i.MX8/8X/8XLite Boot

PDFRev 0Mar 25, 20221.4 MBAN13598English
Sign in required
^{Application Note}
PCIe Certification Guide for i.MX8 Serials

PDFRev 1Jul 27, 20219.8 MBAN12444English
^{Application Note}
i.MX 8X Using L1 Cache for Cortex-M4 Core

PDFRev 0Jul 12, 2021287.6 KBAN13285English
^{Application Note}
i.MX 8QuadXPlus/8DualXPlus/DualX Product Lifetime Usage

PDFRev 0May 25, 2021172.8 KBAN13273English
^{Application Note}
i.MX Manufacturing Protection

PDFRev 0May 24, 2021791.3 KBAN13222English, 中文
Sign in required
^{Application Note}
HSM and SHE on i.MX 8QXP and i.MX 8DXL

PDFRev 1Apr 29, 2021294.3 KBAN12906English
^{Application Note}
i.MX Encrypted Storage Using CAAM Secure Keys

PDFRev 2Feb 9, 2021209.6 KBAN12714English
Sign in required
^{Application Note}
Secure Over-the-Air Prototype for Linux Using CAAM and Mender

PDFRev 1Nov 18, 20202.3 MBAN12900English
Sign in required
^{Application Note}
Google Cast Authentication Aspects Implementation on i.MX

PDFRev 0Jul 15, 2020244.3 KBAN12921English
Sign in required
^{Application Note}
i.MX 8QuadXPlus Power Consumption Measurement

PDFRev 4Jun 29, 2020942.9 KBAN12338English
^{Application Note}
Using Code-Signing Tool with Hardware Security Module

PDFRev 0Jun 8, 2020182.0 KBAN12812English
Sign in required
^{Application Note}
Strengthening Public Key Cryptography using CAAM Secure Key

PDFRev 0Jun 8, 2020198.8 KBAN12838English
Sign in required
^{Application Note}
AN12632: Enhanced OpenSSL on i.MX 8M and i.MX 8MM – Application Note

PDFRev 0Jan 31, 2020278.7 KBAN12632English
Sign in required
^{User Guide}
i.MX 8QuadMax/i.MX 8QuadXPlus/i.MX 8DualXLite Hardware Developer's Guide

PDFRev 2.6Mar 22, 202310.6 MBIMX8HWDGEnglish, 中文
Sign in required
^{User Guide}
i.MX 8QuadXPlus MEK Board Hardware User's Guide

PDFRev 2Jan 12, 2021496.1 KBIMX8QXPMEKHUGEnglish, 中文
Sign in required
^Brochure
i.MX 8 Series Applications Processors Brochure

PDFRev 1Dec 12, 202213.7 MBIMX8SERAPPBREnglish, 日本語
^Errata
Mask Set Errata for Mask 1N95W-B0 Silicon

PDFRev 3.1Apr 18, 2023173.4 KBIMX8X_1N95WEnglish
^Errata
Mask Set Errata for Mask 0N99Z-C0 Silicon

PDFRev 3.1Apr 17, 2023136.2 KBIMX8X_C0_0N99Z_EREnglish
^{Fact Sheet}
i.MX 8X Family of Applications Processors - Fact Sheet

PDFRev 3Feb 4, 20212.1 MBIMX8XFAMFSEnglish, 中文
