LPCXpresso812-MAX Board for LPC81x family MCUs

OM13055
Active

Roll over image to zoom in

The LPCXpresso812-MAX board with NXP®'s LPC812 Cortex-M0+ microcontroller is designed to make it as easy as possible to get started with your project.

LPCXpresso™ is a low-cost development platform available from NXP®, supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached JTAG debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

The order code for this board is OM13055.

Product Details

Features

Connectivity

  • LPCXpresso / mbed and Arduino® UNO expansion connectors give simple access to a wide range of available expansion boards Embedded Artists 14-pin expansion connector

Debug

  • Integrated SWD debugger probe for target MCU

Support

  • Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain, available in free and Pro versions Works with by Keil, IAR, and other toolchains with CMSIS-DAP support

User Components

  • Reset and User interrupt buttons for easy testing of software functionality
  • Tri-color LED
  • On-board ADC

Buy Options

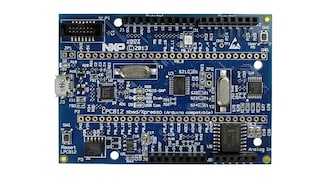

OM13055-Image

Click to expand

OM13055
Active

LPC800-MAX.

$20.70 USD
Pending Stock
ADD TO CART
Order from distributors
