Product Details

Block Diagram

RD33774CNT3EVB

Get diagram PDF

Supported Devices

Power Management

Battery Cell Controllers

MC33774: 18 Channel Li-Ion Battery Cell Controller IC ASIL D

Features

Voltage Measurement

3 MC33774ATA battery cell controllers (BCCs) for up to 54 cells, extendable by adding more CMUs to the daisy chain
Life-time guaranteed high accuracy cell voltage measurement channels, with averaging and advanced filtering

Temperature Measurement

8 analog inputs (including temperature sensors) or GPIOs with advanced filtering per BCC

Cell Balancing

Integrated temperature-controlled cell balancing with up to 300 mA (100 mA using default setup)

Communication

Isolated electrical transport protocol link (ETPL) communication between CMU and BMU

Cost Reduction

Optimized BOM using capacitive isolation on and off board

Buy Options

Click to expand

RD33774CNT3EVB
Active

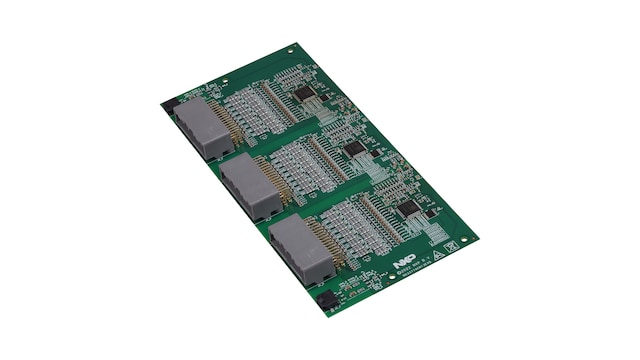

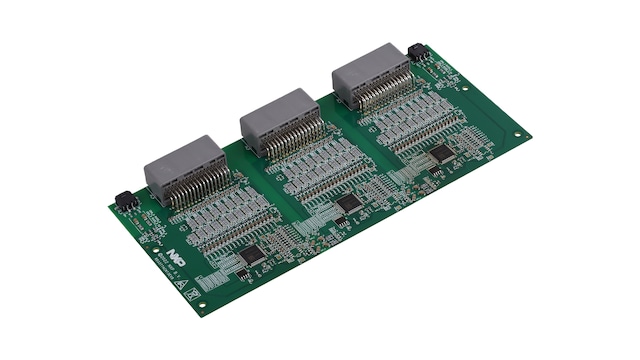

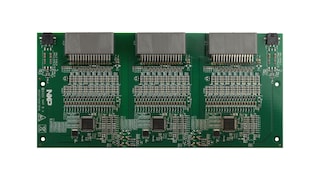

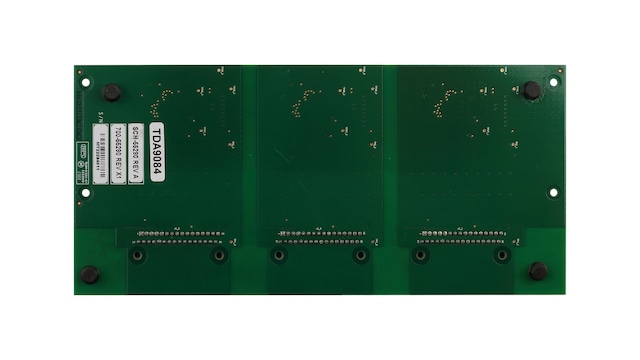

HVBMS Centralized Cell Monitoring Unit Using ETPL with MC33774ATA.

Kit Contains:

Kit contains:
- 1 RD33774CNT3EVB board
- 3 supply cables
- 1 ETPL cable
Note: Optional BATT-18EMULATOR cell emulator is available for this board.
