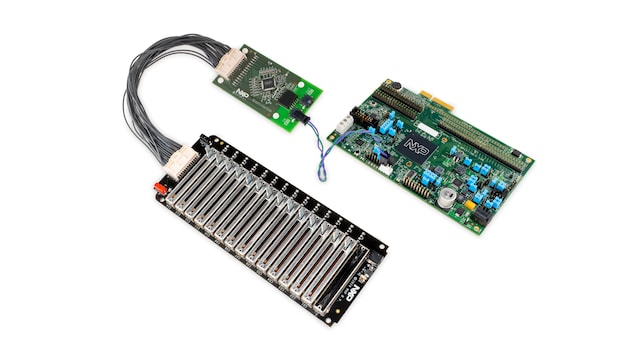

MPC5775B and MC33771 high-voltage BMS Evaluation System

MPC5775B-BATTERYSYSTEM

Roll over image to zoom in

The MPC5775B battery management controller (BMC) plus MC33771 battery cell controller (BCC) system illustrates how to implement a simple high-voltage (HV) battery management system (BMS) in an efficient and easy-to-implement solution including hardware and software enablement.

Block Diagram

MPC5775B BMC plus MC33771 BCC high-voltage BMS System

MPC5775B BMC plus MC33771 BCC high-voltage BMS System
Get diagram PDF

Supported Devices

Products

mWallet 2GO

  • TJA1145: High-Speed CAN Transceiver for Partial Networking

Interfaces

Automotive Ethernet PHYs

  • TJA1100: TJA1100, IEEE 100BASE-T1 Compliant Automotive Ethernet PHY Transceiver

Battery Management

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Battery Cell Controllers

  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC

Power Management

12 V, 24 V, and 48 V SBC Solutions

  • FS6500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Processors and Microcontrollers

Ultra-Reliable MPC57xx MCUs

  • MPC5775B-E: MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications

Features

Microcontroller (MCU)

  • 32-bit Power Architecture® e200z7 three dual issue CPU cores MPC5775B MCU

Transceivers

  • MC33664 high-speed transceiver for use with the MC33771C BCC

System Basis Chip (SBC)

  • FS6500: safety power SBC with CAN flexible data transceiver for the board power supply

Integrated Circuits (ICs)

  • TJA1145 high-speed CAN transceiver for partial networking
  • TJA1100HN: IEEE 100BASE-T1 compliant Automotive Ethernet PHY Transceiver

Interfaces

  • eMIOS, ADC, and DSPI header pins
  • Debug selectable between external debug connection via JTAG or on-board OpenSDA (JTAG to USB interface)

RD33771CDSTEVB (MC33771C BCC Board)

  • 14-Channel Li-ion Battery Cell Controller IC, 100 mA cell balancing
  • TPL communication, daisy chain up to 63
  • 26 pin connector for 14 cell battery connections, 4 external temperature sensors
  • 3 onboard temperature sensors
  • VCOM status RGB LED
  • Diagnostic functions

BATT-14CEMULATOR

  • 12 V Power Input
  • 1.25 V to 4.9 V adjustable Cell Voltage Output, individual cell voltage
  • 0 V to 4.9 V adjustable Temperature Sensor Emulator
  • LED power indicator

Buy Options

BATT-14CEMULATOR-Image

Click to expand

BATT-14CEMULATOR
Active

14-Cell Battery Pack Emulator to Supply MC33771C BCC EVBs.

    $393.30 USD
    In Stock :10

    Normally ships 1-2 business days

    ADD TO CART
    Order from distributors
    RD33771CDSTEVB-Image

    Click to expand

    RD33771CDSTEVB
    Active

    Evaluation Board for MC33771C BCC with Isolated Daisy Chain Communication.

      $426.00 USD
      In Stock :5

      Normally ships 1-2 business days

      ADD TO CART
      Order from distributors
      MPC5775B-EVB-Image

      Click to expand

      MPC5775B-EVB
      Active

      MPC5775B/E low-cost BMS and Inverter Development Board.

        $279.00 USD
        Pending Stock
        ADD TO CART
        Order from distributors
