Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver

FRDM33664BEVB Active

Roll over image to zoom in

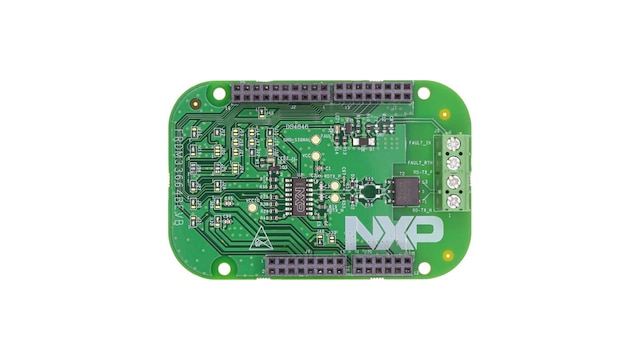

This Evaluation board features the MC33664ATL a transceiver physical layer transformer driver designed to interface a microcontroller to a high speed isolated communication network. MCU SPI data are directly converted to pulse bits and transferred to the bus network.

Follower response messages use the same structure to send pulse bit information to the MC33664ATL which is then converted to an SPI bit stream for MCU.

This EVB works with the MC3377x Battery Cell Controllers. MC3377x are automotive lithium-ion Battery Cell Controller ICs for hybrid (HEV) and electric vehicle (EV) as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS).

Supported Devices

Power Management

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Battery Cell Controllers

  • MC33772B: 6-Channel Li-Ion Battery Cell Controller IC
  • MC33771B: 14-Channel Li-Ion Battery Cell Controller IC

Features

Connectivity

  • 2.0 Mbit/s isolated network communication rate
  • Dual SPI architecture for message confirmation

Power Management

  • Robust conducted and radiated immunity with wake-up
  • 3.3 V and 5.0 V compatible logic thresholds
  • Low sleep mode current with automatic bus wake-up
  • Ultra-low radiated emissions

Support

  • Documentation and Design Files are available on docstore.nxp.com (NDA required)

Buy Options

FRDM33664BEVB-Image

Click to expand

  • FRDM33664BEVB

  • Freedom Expansion board,- MC33664,Transformer Physical Layer.

  • The FRDM33664BEVB development kit contents include:
    • Assembled and tested evaluation board/module in an anti-static bag
    • Quick start guide
  • $117.30USD
  • For a quantity of 1
    • Availability: In stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
