Freedom HW for MC12XSF and MC12XS6 families

FRDM-MC12XSF Active

Roll over image to zoom in

NXP's Freedom boards for MC12XSF and MC12XS6 are hardware tool for evaluation and development for the different industrial eXtreme switches such as automotive. These are 4 different boards pin-to-pin and software compatible that covers 4 different devices in SOIC32 package from these MC12XSF and MC12XS6 families.

These devices are 12 V quad or penta high side devices that features integrated control with high flexibility and a high number of protection and diagnostic functions.

These boards are easy to use thanks to the following interfaces:

  • FRDM-KL25Z and its SPIGEN Graphical User Interface
  • Freedom KL25z, KV10Z, K64F with Processor Expert components

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

Power Management

High Side Switches

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Features

Evaluation module

    4 different boards to cover 4 different devices in SOIC32 package

  • FRDM-17XSF5-EVB: covers MC17XSF500 and MC17XS6500 (5 outputs 17 mOhm)
  • FRDM-17XSF4-EVB: covers MC17XSF400 and MC17XS6400 (4 outputs 17 mOhm)
  • FRDM-08XSF4-EVB: covers MC08XSF421 and MC08XS6421 (2x08 mOhm and 2x21 mOhms)
  • FRDM-40XSF5-EVB: covers MC40XSF500 and MC40XS6500 (5 outputs 40 mOhm)

Can be driven by the 16-bit SPI using

  • KL25Z with SPIGen software
  • KL25Z, KV10Z and K64F using Processor Expert component Gen4eXtremeSwitch using CodeWarrior 10.6 or Kinetis Design Studio v3.0 or higher
  • With direct input signals in Failsafe mode operation (switch on board).

General Specifications

  • This board can control various types of loads such as solenoids, PLC, DC motors, bulbs, or LED.
  • These devices are 16-bit 5.0 MHz SPI, control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting.

Power Management

  • Output current monitoring with programmable synchronization signal and battery voltage feedback.

Components

  • External smart power switch control.

Buy Options

FRDM-40XSF5-EVB-Image

Click to expand

  • FRDM-40XSF5-EVB
    Active

  • Freedom Expansion Board, MC40XSF500 - High-Side Switch, 12V, Penta 40mOhms.

    • Freedom board
    • Connectors for power input/outputs
    • Quick Start Guide
  • $41.54 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

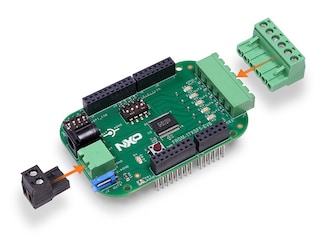

FRDM-17XSF5-EVB-Image

Click to expand

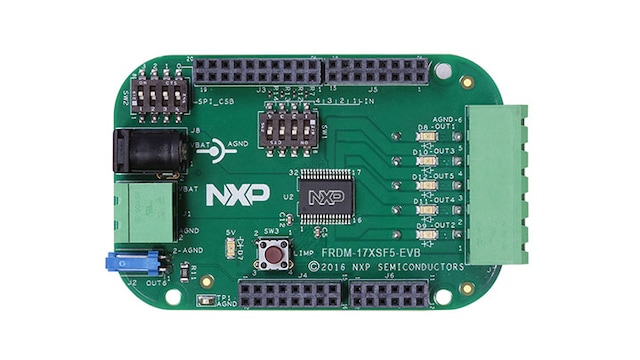

  • FRDM-17XSF5-EVB
    Active

  • Freedom Expansion Board, MC17XSF500 - High-Side Switch, 12V, Penta 17mOhm.

  • $41.54 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
FRDM-17XSF4-EVB-Image

Click to expand

  • FRDM-17XSF4-EVB
    Active

  • Freedom Expansion Board, MC17XSF400 - High-Side Switch, 18V, Quad 17mOhms.

  • $41.54 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
FRDM-08XSF4-EVB-Image

Click to expand

  • FRDM-08XSF4-EVB
    Active

  • Freedom Expansion Board, MC08XSF421 - High-Side Switch, 12V, Dual 8mOhms + Dual 21mOhms.

  • $41.54 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
